1N6351US - (1N6309US - 1N6355US) VOIDLESS-HERMETICALLY-SEALED Surface Mount

Download the 1N6351US datasheet PDF (1N6309US included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (1n6309us - 1n6355us) voidless-hermetically-sealed surface mount.

Description

This Zener Voltage Regulator series is military qualified to MIL-PRF19500/533 and is ideal for high-reliability applications where a failure cannot be tolerated.

Features

  • Popular JEDEC registered series Voidless hermetically sealed glass package Triple-layer passivation Internal “Category I” Metallurgical bonds for 1N6320 thru 1N6355 and “Category III” for 1N6309 thru 1N6319 JAN, JANTX, JANTXV, and JANS available per MILPRF-19500/533 for 1N6309US to 1N6336US JANS types available per MIL-S-19500/533 for 1N6320US to 1N6336US. Axial-leaded equivalents also available (see separate data sheet for 1N6309 thru 1N6355).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1N6309US_MicrosemiCorporation.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • 1N6351US - ZENER 500mW VOLTAGE REGULATOR (SENSITRON SEMICONDUCTOR)
  • 1N6351 - 500mW GLASS ZENER DIODES (Microsemi)
  • 1N6351 - 500mW GLASS ZENER DIODES (Digitron Semiconductors)
  • 1N6351 - ZENER 500mW VOLTAGE REGULATOR (SENSITRON SEMICONDUCTOR)
  • 1N6351C - 500mW GLASS ZENER DIODES (Microsemi)
  • 1N6351D - 500mW GLASS ZENER DIODES (Microsemi)
  • 1N6350 - 500mW GLASS ZENER DIODES (Microsemi)
  • 1N6350 - 500mW GLASS ZENER DIODES (Digitron Semiconductors)
  • 1N6350 - ZENER 500mW VOLTAGE REGULATOR (SENSITRON SEMICONDUCTOR)
  • 1N6350C - 500mW GLASS ZENER DIODES (Microsemi)
Other Datasheets by Microsemi Corporation
  • 1N6350US - (1N6309US - 1N6355US) VOIDLESS-HERMETICALLY-SEALED Surface Mount
  • 1N6352US - (1N6309US - 1N6355US) VOIDLESS-HERMETICALLY-SEALED Surface Mount
  • 1N6353US - (1N6309US - 1N6355US) VOIDLESS-HERMETICALLY-SEALED Surface Mount
  • 1N6354US - (1N6309US - 1N6355US) VOIDLESS-HERMETICALLY-SEALED Surface Mount
  • 1N6355US - (1N6309US - 1N6355US) VOIDLESS-HERMETICALLY-SEALED Surface Mount
  • 1N6309US - (1N6309US - 1N6355US) VOIDLESS-HERMETICALLY-SEALED Surface Mount
  • 1N6310US - (1N6309US - 1N6355US) VOIDLESS-HERMETICALLY-SEALED Surface Mount
  • 1N6311US - (1N6309US - 1N6355US) VOIDLESS-HERMETICALLY-SEALED Surface Mount

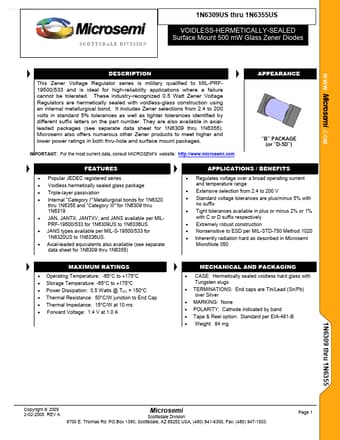

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 1N6309US thru 1N6355US VOIDLESS-HERMETICALLY-SEALED Surface Mount 500 mW Glass Zener Diodes SCOTTSDALE DIVISION DESCRIPTION This Zener Voltage Regulator series is military qualified to MIL-PRF19500/533 and is ideal for high-reliability applications where a failure cannot be tolerated. These industry-recognized 0.5 Watt Zener Voltage Regulators are hermetically sealed with voidless-glass construction using an internal metallurgical bond. It includes Zener selections from 2.4 to 200 volts in standard 5% tolerances as well as tighter tolerances identified by different suffix letters on the part number. They are also available in axialleaded packages (see separate data sheet for 1N6309 thru 1N6355).
