1N5194UR - LL-35 High Voltage / Current Low Leakage Glass Diodes

Name: 1N5194UR
SKU: 1N5194UR-119854

Microsemi Corporation

The 1N5194UR by Microsemi Corporation is a LL-35 High Voltage / Current Low Leakage Glass Diodes. Below is the official datasheet preview.

📥 Download Datasheet

1N5194UR LL-35 High Voltage / Current Low Leakage Glass Diodes by Microsemi Corporation - Datasheet Preview — Official preview page of the **1N5194UR** LL-35 High Voltage / Current Low Leakage Glass Diodes datasheet (Microsemi Corporation).

Datasheet Details

Part number	1N5194UR
Manufacturer	Microsemi Corporation
File Size	58.47 KB
Description	LL-35 High Voltage / Current Low Leakage Glass Diodes
Datasheet	1N5194UR_MicrosemiCorporation.pdf

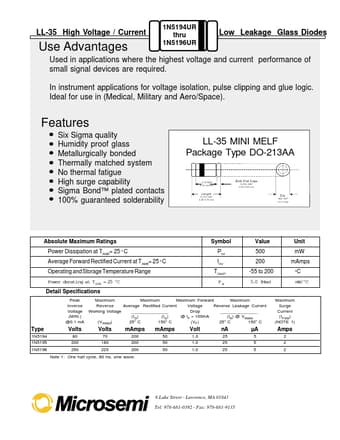

Additional preview pages of the 1N5194UR datasheet.

1N5194UR Product details

Features

Six Sigma quality Humidity proof glass Metallurgically bonded Thermally matched system No thermal fatigue High surge capability Sigma Bond™ plated contacts 100% guaranteed solderability LL-35 MINI MELF Package Type DO-213AA 0.10"R E F 2.54 m m R E F B o th E nd C ap s 0.016-.022 " 0.41-0.55 m m Le ngth 0.13-0.146 " 3.30-3.70 m m D ia . .063-.067" 1.6-1.7m m Absolute Maximum Ratings Power Dissipation at TAMB= 25 o C Average Forward Rectified Current at TAMB= 25 C Operating and Storage Tempe.
