ME6209 - Low Power Consumption LDO

Microne

📥 Download Datasheet

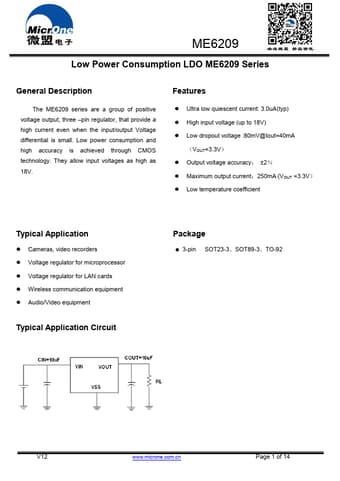

ME6209 Datasheet Preview — Preview of ME6209 PDF

Datasheet Details

Part number	ME6209
Manufacturer	Microne
File Size	604.15 KB
Description	Low Power Consumption LDO
Datasheet	ME6209-Microne.pdf

ME6209 Product details

Description

The ME6209 series are a group of positive voltage output,three pin regulator,that provide a high current even when the input/output Voltage differerntial is small.Low power consumption and high accuracy is achieved through CMOS technology.They allow input voltages as high as 18V.

Features

l l l l l ÿ l l Ultra low quienscent current: 3.0uA(typ) High input voltage (up to 18v) Low dropout voltage :80mV@Iout=40mA ÿV out=3.3vÿ Output voltage accuracyÿ ±2 ÿ Maximum output currentÿ250mA within max. power dissipation,Vout=3.3Vÿ Low temperature coefficient PackageÿSOT23-3 0TO-92 0SOT89-3 Selection Guide Typical.
