ME2182 - 1.2MHz Synchronous Step-Up DC/DC Controller

The ME2182 by Microne is a 1.2MHz Synchronous Step-Up DC/DC Controller. Below is the official datasheet preview.

📥 Download Datasheet

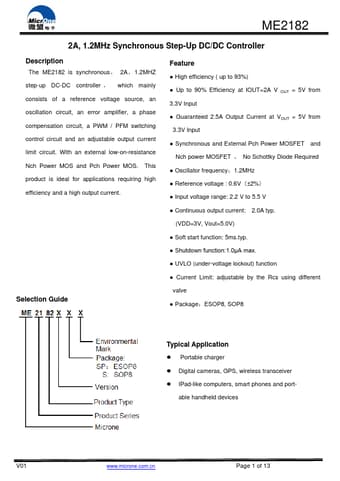

Official preview page of the ME2182 1.2MHz Synchronous Step-Up DC/DC Controller datasheet (Microne).

Datasheet Details

Part number ME2182
Manufacturer Microne
File Size 489.26 KB
Description 1.2MHz Synchronous Step-Up DC/DC Controller
Datasheet download datasheet ME2182-Microne.pdf
Additional preview pages of the ME2182 datasheet.

ME2182 Product details

Description

The ME2182 is synchronous， 2A，1.2MHZ step-up DC-DC controller ， which mainly consists of a reference voltage source, an oscillation circuit, an error amplifier, a phase compensation circuit, a PWM / PFM switching control circuit and an adjustable output current limit circuit. High efficiency ( up to 93%)
