MTFDDAT064MAM Datasheet PDF ((MTFDDAT032MAM / MTFDDAT064MAM) C400v mSATA NAND Flash SSD)

MTFDDAT064MAM - (MTFDDAT032MAM / MTFDDAT064MAM) C400v mSATA NAND Flash SSD

Download the MTFDDAT064MAM datasheet PDF (MTFDDAT032MAM included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (mtfddat032mam / mtfddat064mam) c400v msata nand flash ssd.

Description

Micron’s RealSSD solid state drive (SSD) uses a single-chip controller with a SATA interface on the system side and n-channels of Micron NAND Flash internally.

Packaged in an JEDEC-standard mSATA form factor, the SSD integrates easily in existing storage infrastructures.

Features

C400v mSATA NAND Flash SSD MTFDDAT032MAM, MTFDDAT064MAM Features.
Micron® 25nm MLC NAND Flash RoHS-compliant package SATA 6 Gb/s interface ATA modes supported.
PIO mode 3, 4.
Multiword DMA mode 0, 1, 2.
Ultra DMA mode 0, 1, 2, 3, 4, 5 Industry-standard, 512-byte sector size support Native command queuing support with 32-command slot support ATA-8 ACS2 command set compliant ATA security feature command set and password login suppo.

Datasheet Details

Part number	MTFDDAT064MAM
Manufacturer	Micron Technology
File Size	357.24 KB
Description	(MTFDDAT032MAM / MTFDDAT064MAM) C400v mSATA NAND Flash SSD
Datasheet	MTFDDAT064MAM Datasheet

📁 Similar Datasheet

MTF-26 - (MTF-xx) Centerline Single and Dual ROW (Methode Electronics)

MTF-T057AMSLN-V1 - LCD Module (Microtips)

MTF-T057AMSLN-V4 - LCD Module (Microtips)

MTF-TQ24NN731-LB - LCD (Microtips)

MTF-TV57NN721-AV - LCD (Microtips)

MTF-xx - (MTF-xx) Centerline Single and Dual ROW (Methode Electronics)

MTF0280QT-17 - Display Module (Microtech)

MTF0320CMIL-06 - TFT LCD Module (ICbanQ)

MTF0350QHD-16 - TFT LCD Module (ETC)

MTF26 - (MTF-xx) Centerline Single and Dual ROW (Methode Electronics)

Full PDF Text Transcription

Click to expand full text

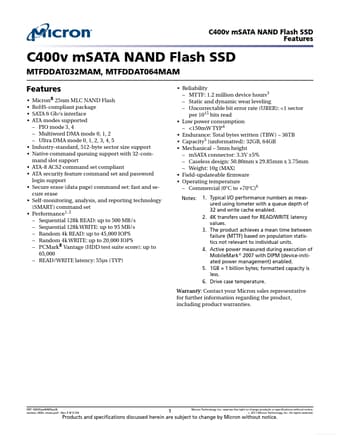

C400v mSATA NAND Flash SSD Features C400v mSATA NAND Flash SSD MTFDDAT032MAM, MTFDDAT064MAM Features • • • • Micron® 25nm MLC NAND Flash RoHS-compliant package SATA 6 Gb/s interface ATA modes supported – PIO mode 3, 4 – Multiword DMA mode 0, 1, 2 – Ultra DMA mode 0, 1, 2, 3, 4, 5 Industry-standard, 512-byte sector size support Native command queuing support with 32-command slot support ATA-8 ACS2 command set compliant ATA security feature command set and password login support Secure erase (data page) command set: fast and secure erase Self-monitoring, analysis, and reporting technology (SMART) command set Performance1, 2 – Sequential 128k READ: up to 500 MB/s – Sequential 128k WRITE: up to 95 MB/s – Random 4k READ: up to 45,000 IOPS – Random 4k WRITE: up to 20,000 IOPS – PCMark® Vantage

Published: Jan 16, 2014 |
