MT53E2G32D4 - LPDDR4X/LPDDR4 SDRAM

Product Overview

Micron

📥 Download Datasheet

MT53E2G32D4 LPDDR4X/LPDDR4 SDRAM by Micron - Datasheet Preview — Datasheet preview – MT53E2G32D4

Datasheet Details

Part number	MT53E2G32D4
Manufacturer	Micron
File Size	9.25 MB
Description	LPDDR4X/LPDDR4 SDRAM
Datasheet	MT53E2G32D4 Datasheet
Note	This datasheet PDF includes multiple part numbers: MT53E2G32D4, MT53E1G16D1. Please refer to the document for exact specifications by model.

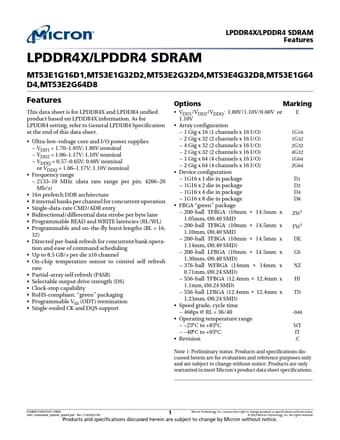

Additional preview pages of the MT53E2G32D4 datasheet.

Product details

Features

LPDDR4X/LPDDR4 SDRAM MT53E1G16D1,MT53E1G32D2,MT53E2G32D4,MT53E4G32D8,MT53E1G64 D4,MT53E2G64D8 Features This data sheet is for LPDDR4X and LPDDR4 unified product based on LPDDR4X information. As for LPDDR4 setting, refer to General LPDDR4 Specification at the end of this data sheet.
Ultra-low-voltage core and I/O power supplies.
VDD1 = 1.70.
1.95V; 1.80V nominal.
VDD2 = 1.06.
1.17V; 1.10V nominal.
VDDQ = 0.57.
0.65V; 0.60V nominal or VD.
