MD120-12-1 - industrial and commercial process and control systems

Download the MD120-12-1 datasheet PDF. This datasheet also covers the MD120 variant, as both devices belong to the same industrial and commercial process and control systems family and are provided as variant models within a single manufacturer datasheet.

Features

  • Compact size, high efficiency and DIN Rail mounting.
  • 100-240VAC wide-range auto-selection input.
  • Overcurrent, shortcircuit, and overvoltage protection.
  • DC OK LED Indicator w/remote indicator contact.
  • Adjustable DC output voltage.
  • Power boost for unusual start-up loading.
  • Parallel operation capable for power and redundancy.
  • Safety meets UL508, UL60950 and IEC60950.
  • CE EN61000-3-2 compliant active PFC filtering.
  • EMI meets FCC15 B, EN55022 B and CI.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MD120-Micron.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MD120HFR120C2S MOSFET STARPOWER
MD1210 HIGH SPEED DUAL MOSFET DRIVER Supertex
MD1210 High-Speed Dual MOSFET Driver Microchip
MD1211 HIGH SPEED DUAL MOSFET DRIVER Supertex
MD1213 High-Speed Dual-MOSFET Driver Microchip

Other Datasheets by Micron Technology

Part Number Description
MD120-24-1 industrial and commercial process and control systems
MD120-48-1 industrial and commercial process and control systems
MD120 industrial and commercial process and control systems

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

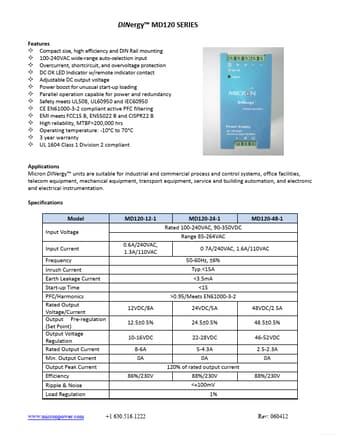

DINergy™ MD120 SERIES Features  Compact size, high efficiency and DIN Rail mounting  100-240VAC wide-range auto-selection input  Overcurrent, shortcircuit, and overvoltage protection  DC OK LED Indicator w/remote indicator contact  Adjustable DC output voltage  Power boost for unusual start-up loading  Parallel operation capable for power and redundancy  Safety meets UL508, UL60950 and IEC60950  CE EN61000-3-2 compliant active PFC filtering  EMI meets FCC15 B, EN55022 B and CISPR22 B  High reliability, MTBF>200,000 hrs  Operating temperature: -10°C to 70°C  3 year warranty  UL 1604 Class 1 Division 2 compliant Applications Micron DINergy™ units are suitable for industrial and commercial process and control systems, office facilities, telecom equipment, mechanical equipment,
