M25P16 Flash Embedded Memory

M25P16 Description

Micron M25P16 Serial Flash Embedded Memory .
6 Signal Descriptions 8 SPI Modes 9 Operating Features 11 Page Programming 11 Sector Erase, Bulk Erase 11 Polling during a Write, Program, or Er.

M25P16 Features

* Micron M25P16 Serial Flash Embedded Memory 16Mb, 3V Features
* SPI bus compatible serial interface
* 16Mb Flash memory
* 75 MHz clock frequency (maximum)
* 2.7V to 3.6V single supply voltage
* Page program (up to 256 bytes) in 0.64ms (TYP)
* Erase cap

📥 Download Datasheet

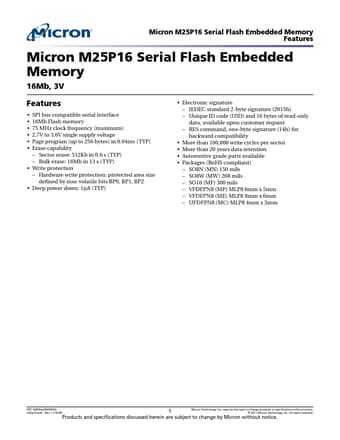

Preview of M25P16 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M25P16
Manufacturer
Micron
File Size
733.05 KB
Datasheet
M25P16-Micron.pdf
Description
Flash Embedded Memory
