JS28F256P30BFE - Parallel NOR Flash Embedded Memory

Features

  • Micron Parallel NOR Flash Embedded Memory (P30-65nm) JS28F256P30B/TFx, RC28F256P30B/TFx, PC28F256P30B/TFx, RD48F4400P0VBQEx, RC48F4400P0VB0Ex, PC48F4400P0VB0Ex, PF48F4000P0ZB/TQEx Features.
  • High performance.
  • 100ns initial access for Easy BGA.
  • 110ns initial access for TSOP.
  • 25ns 16-word asychronous page read mode.
  • 52 MHz (Easy BGA) with zero WAIT states and 17ns clock-to-data output synchronous burst read mode.
  • 4-, 8-, 16-, and continuous wor.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by Micron

Full PDF Text Transcription

Click to expand full text

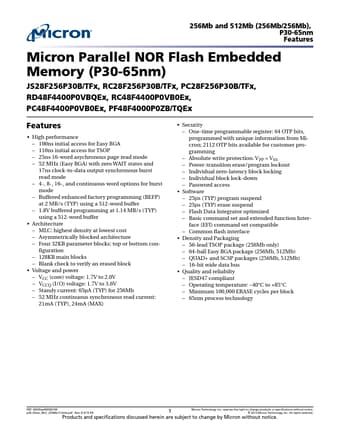

256Mb and 512Mb (256Mb/256Mb), P30-65nm Features Micron Parallel NOR Flash Embedded Memory (P30-65nm) JS28F256P30B/TFx, RC28F256P30B/TFx, PC28F256P30B/TFx, RD48F4400P0VBQEx, RC48F4400P0VB0Ex, PC48F4400P0VB0Ex, PF48F4000P0ZB/TQEx Features • High performance – 100ns initial access for Easy BGA – 110ns initial access for TSOP – 25ns 16-word asychronous page read mode – 52 MHz (Easy BGA) with zero WAIT states and 17ns clock-to-data output synchronous burst read mode – 4-, 8-, 16-, and continuous word options for burst mode – Buffered enhanced factory programming (BEFP) at 2 MB/s (TYP) using a 512-word buffer – 1.8V buffered programming at 1.
