29F64G08CBAAA - MT29F64G08CBAAA

Micron

📥 Download Datasheet

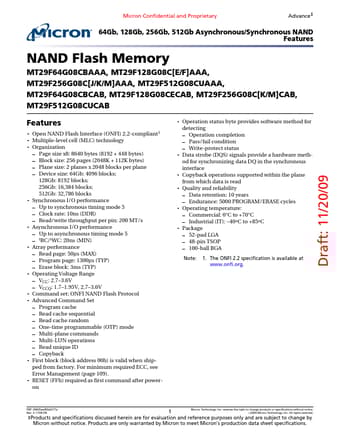

29F64G08CBAAA Datasheet Preview — Preview of 29F64G08CBAAA PDF

Datasheet Details

Part number	29F64G08CBAAA
Manufacturer	Micron
File Size	3.36 MB
Description	MT29F64G08CBAAA
Datasheet	29F64G08CBAAA_Micron.pdf

29F64G08CBAAA Product details

Description

9 Asynchronous and Synchronous Signal Descriptions 9 Signal Assignments 11 Package Dimensions 14 Architecture 19 Device and Array Organization 20 Bus Operation Asynchronous Interface 28 Asynchronous Enable/Standby 28 Asynchronous Bus Idle 28 Asynchronous Commands 29 Asynchronous Addresses 30 Asynchronous Data Input 31 Asynchronous Data Output 32 Write Protect 33 Ready/Busy# 33 Bus Operation Synchronous Interface 38 Synchronous Enable/Standby 39 Synchronous Bu

Features

NAND Flash Memory MT29F64G08CBAAA, MT29F128G08C[E/F]AAA, MT29F256G08C[J/K/M]AAA, MT29F512G08CUAAA, MT29F64G08CBCAB, MT29F128G08CECAB, MT29F256G08C[K/M]CAB, MT29F512G08CUCAB Features.
Open NAND Flash Interface (ONFI) 2.2-compliant1.
Multiple-level cell (MLC) technology.
Organization.
Page size x8: 8640 bytes (8192 + 448 bytes).
Block size: 256 pages (2048K + 112K bytes).
Plane size: 2 planes x 2048 blocks per plane.
Device size: 64Gb.
