MT9M413C36STC, MT9M413 - 1.3-MEGAPIXEL CMOS ACTIVE-PIXEL DIGITAL IMAGE SENSOR

Micron Technology

The MT9M413C36STC by Micron Technology is a 1.3-MEGAPIXEL CMOS ACTIVE-PIXEL DIGITAL IMAGE SENSOR. Below is the official datasheet preview.

📥 Download Datasheet

MT9M413C36STC 1.3-MEGAPIXEL CMOS ACTIVE-PIXEL DIGITAL IMAGE SENSOR by Micron Technology - Datasheet Preview — Official preview page of the **MT9M413C36STC** 1.3-MEGAPIXEL CMOS ACTIVE-PIXEL DIGITAL IMAGE SENSOR datasheet (Micron Technology).

Datasheet Details

Part number	MT9M413C36STC, MT9M413
Manufacturer	Micron Technology
File Size	555.69 KB
Description	1.3-MEGAPIXEL CMOS ACTIVE-PIXEL DIGITAL IMAGE SENSOR
Datasheet	MT9M413_MicronTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: MT9M413C36STC, MT9M413. Please refer to the document for exact specifications by model.

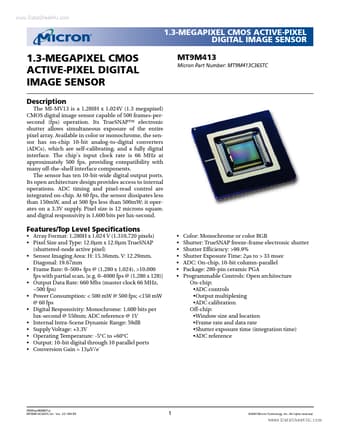

Additional preview pages of the MT9M413C36STC datasheet.

MT9M413C36STC Product details

Description

The MI-MV13 is a 1,280H x 1,024V (1.3 megapixel) CMOS digital image sensor capable of 500 frames-persecond (fps) operation.

Features

Top Level Specifications.
Array Format: 1,280H x 1,024 V (1,310,720 pixels).
Pixel Size and Type: 12.0µm x 12.0µm TrueSNAP (shuttered-node active pixel).
Sensor Imaging Area: H: 15.36mm, V: 12.29mm, Diagonal: 19.67mm.
Frame Rate: 0.
500+ fps @ (1,280 x 1,024), >10,000 fps with partial scan, [e. g. 0.
4000 fps @ (1,280 x 128)].
Output Data Rate: 660 Mbs (master clock 66 MHz, ~500 fps).
Power Consumption: < 500 mW @ 500 fps;.
