dsPIC33FJ256GP506A - 16-bit Digital Signal Controllers

Product Overview

Microchip

Part number	dsPIC33FJ256GP506A
Manufacturer	Microchip
File Size	5.46 MB
Description	16-bit Digital Signal Controllers
Datasheet	dsPIC33FJ256GP506A Datasheet
Note	This datasheet PDF includes multiple part numbers: dsPIC33FJ256GP506A, dsPIC33FJ64GP706A. Please refer to the document for exact specifications by model.

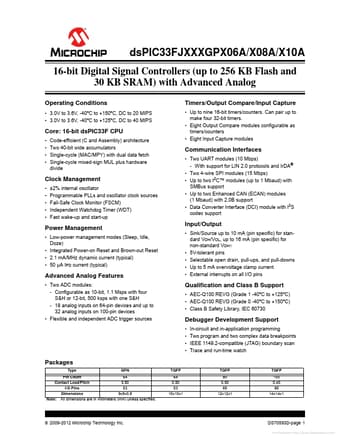

Additional preview pages of the dsPIC33FJ256GP506A datasheet.

Two ADC modules: - Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H - 18 analog inputs on 64-pin devices and up to 32 analog inputs on 100-pin devices.
Flexible and independent ADC trigger sources Qualification and Class B Support.
AEC-Q100 REVG (Grade 1 -40ºC to +125ºC).
AEC-Q100 REVG (Grade 0 -40ºC to +150ºC).
Class B Safety Library, IEC 60730 Debugger Development Support.
In-c.
