dsPIC33CH128MP508 - 16-Bit Digital Signal Controllers

Name: dsPIC33CH128MP508
SKU: dsPIC33CH128MP508-1355050

Microchip

The dsPIC33CH128MP508 by Microchip is a 16-Bit Digital Signal Controllers. Below is the official datasheet preview.

Datasheet Details

Part number	dsPIC33CH128MP508
Manufacturer	Microchip
File Size	4.73 MB
Description	16-Bit Digital Signal Controllers
Datasheet	dsPIC33CH128MP508-Microchip.pdf

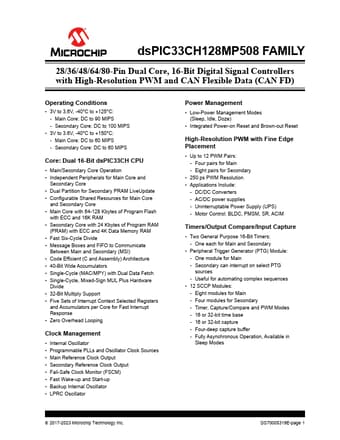

Additional preview pages of the dsPIC33CH128MP508 datasheet.

Four ADC Modules: - One module for Main core - Three modules for Secondary core - 12-bit, 3.5 Msps ADC - Up to 18 conversion channels.
Four DAC/Analog Comparator Modules: - One module for Main core - Three modules for Secondary core - 12-bit DACs with hardware slope compensation - 15 ns analog comparators.
Three PGA Modules: - Three modules for Secondary core - Can be read by Host ADC - Option to interface with Host ADC.
Shared DAC/Analog Output: - DAC/analog.
