VN2210 - N-Channel Vertical DMOS FET

Description

VN2210 is an Enhancement-mode (normally-off) transistor that utilizes a vertical Double-diffused Metal-Oxide Semiconductor (DMOS) structure and a well-proven silicon gate manufacturing process.

Features

  • Free from Secondary Breakdown.
  • Low Power Drive Requirement.
  • Ease of Paralleling.
  • Low CISS and Fast Switching Speeds.
  • Excellent Thermal Stability.
  • Integral Source-drain Diode.
  • High Input Impedance and High Gain.

📥 Download Datasheet

📁 Similar Datasheet

  • VN2210 - N-Channel Enhancement-Mode Vertical DMOS FETs (Supertex)
  • VN220 - HIGH SIDE SMART POWER SOLID STATE RELAY (STMicroelectronics)
  • VN2204N3 - N-Channel Enhancement-Mode Vertical DMOS FETs (Supertex Inc)
  • VN2204ND - N-Channel Enhancement-Mode Vertical DMOS FETs (Supertex Inc)
  • VN2206 - N-Channel Enhancement-Mode Vertical DMOS FETs (Supertex)
  • VN2222 - N-Channel Enhancement-Mode Vertical DMOS FETs (Supertex Inc)
  • VN2222 - N-Channel Enhancement-Mode MOS Transistors (Calogic LLC)
  • VN2222KM - N-Channel Enhancement-Mode MOS Transistors (Siliconix)
  • VN2222KM - N-Channel Enhancement Mode MOSPOWER (New Jersey Semi-Conductor)
  • VN2222L - N-Channel Enhancement-Mode MOS Transistors (Siliconix)
Other Datasheets by Microchip
  • VN2224 - N-Channel Vertical DMOS FET
  • VN2110 - N-Channel Vertical DMOS FET
  • VN2410 - N-Channel Vertical DMOS FET
  • VN2450 - N-Channel Vertical DMOS FET
  • VN2460 - N-Channel Vertical DMOS FET

Full PDF Text Transcription

Click to expand full text

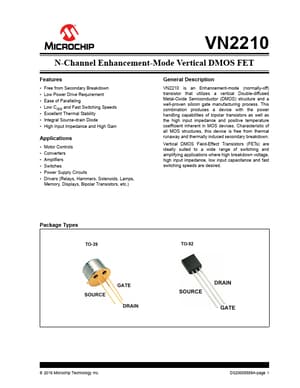

VN2210 N-Channel Enhancement-Mode Vertical DMOS FET Features • Free from Secondary Breakdown • Low Power Drive Requirement • Ease of Paralleling • Low CISS and Fast Switching Speeds • Excellent Thermal Stability • Integral Source-drain Diode • High Input Impedance and High Gain Applications • Motor Controls • Converters • Amplifiers • Switches • Power Supply Circuits • Drivers (Relays, Hammers, Solenoids, Lamps, Memory, Displays, Bipolar Transistors, etc.) General Description VN2210 is an Enhancement-mode (normally-off) transistor that utilizes a vertical Double-diffused Metal-Oxide Semiconductor (DMOS) structure and a well-proven silicon gate manufacturing process.
