TC1412N - 2A High-Speed MOSFET Drivers

Download the TC1412N datasheet PDF (TC1412 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 2a high-speed mosfet drivers.

Description

The TC1412/TC1412N are 2A CMOS buffers/drivers.

They do not latch up under any conditions within their power and voltage ratings.

Features

  • Latch-Up Protected: Withstands 500 mA Reverse Current.
  • Input Withstands Negative Inputs Up to 5V.
  • Electrostatic Discharge (ESD) Protected: 2.0 kV (HBM) and 400V (MM).
  • High Peak Output Current: 2A.
  • Wide Input Supply Voltage Operating Range: - 4.5V to 16V.
  • High Capacitive Load Drive Capability: - 1000 pF in 18 ns.
  • Short Delay Time: 35 ns typical.
  • Matched Delay Times.
  • Low Supply Current: - With Logic ‘1’ Input: 500 µA.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TC1412_MicrochipTechnology.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • TC1412 - HIGH-SPEED MOSFET DRIVERS (TelCom Semiconductor)
  • TC1412 - 2A High-Speed MOSFET Drivers (Microchip Technology)
  • TC1410 - HIGH-SPEED MOSFET DRIVERS (TelCom Semiconductor)
  • TC1411 - HIGH-SPEED MOSFET DRIVERS (TelCom Semiconductor)
  • TC1411 - High-Speed MOSFET Drivers (Microchip Technology)
  • TC1413 - HIGH-SPEED MOSFET DRIVERS (TelCom Semiconductor)
  • TC1413 - 3A High-Speed MOSFET Drivers (Microchip Technology)
  • TC1414 - Flash Eye Lens (Tokina)
  • TC140 - Temperature Compensated Crystal Oscillators (TCXOs) (ETC)
  • TC140G - CMOS Gate Array (Toshiba)
Other Datasheets by Microchip
  • TC1413N - 3A High-Speed MOSFET Drivers
  • TC1025 - Dual Low Power Comparator
  • TC1029 - Dual Low Power Op Amp
  • TC1047A - Precision Temperature-to-Voltage Converter
  • TC1055 - CMOS LDOs
  • TC1071 - CMOS LDOs
  • TC110 - PFM/PWM Step-Up DC/DC Controller
  • TC1107 - 300mA CMOS LDO

Full PDF Text Transcription

Click to expand full text

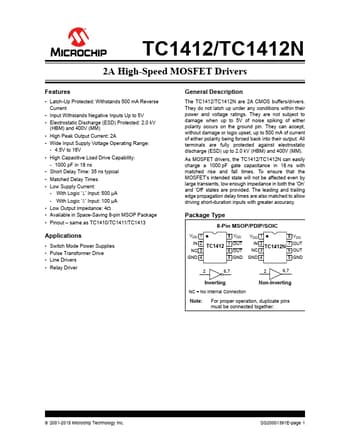

TC1412/TC1412N 2A High-Speed MOSFET Drivers Features • Latch-Up Protected: Withstands 500 mA Reverse Current • Input Withstands Negative Inputs Up to 5V • Electrostatic Discharge (ESD) Protected: 2.0 kV (HBM) and 400V (MM) • High Peak Output Current: 2A • Wide Input Supply Voltage Operating Range: - 4.5V to 16V • High Capacitive Load Drive Capability: - 1000 pF in 18 ns • Short Delay Time: 35 ns typical • Matched Delay Times • Low Supply Current: - With Logic ‘1’ Input: 500 µA - With Logic ‘0’ Input: 100 µA • Low Output Impedance: 4 • Available in Space-Saving 8-pin MSOP Package • Pinout – same as TC1410/TC1411/TC1413 Applications • Switch Mode Power Supplies • Pulse Transformer Drive • Line Drivers • Relay Driver General Description The TC1412/TC1412N are 2A CMOS buffers/drivers.
