PIC24FJ64GU203, PIC24FJ64GU205 16-Bit eXtreme Low-Power Microcontrollers

PIC24FJ64GU203 Description

PIC24FJ64GP205/GU205 Family 16-Bit eXtreme Low-Power Microcontrollers with USB in Low Pin Count Packages High-Performance CPU * Modified Harva.

PIC24FJ64GU203 Features

* USB v2.0 On-The-Go (OTG)
* Dual Role Capable
* Can Act as either Host or Device
* Low-Speed (1.5 Mb/s) and Full-Speed (12 Mb/s) USB Operation in Host mode
* Full-Speed USB Operation in Device mode
* High-Precision PLL for USB
* USB Device mod

PIC24FJ64GU203 Applications

* Programmable 32-Bit Cyclic Redundancy Check (CRC) Generator
* Flash OTP by ICSP™ Write Inhibit
* CodeGuard™ Security
* ECC Flash Memory (64 Kbytes) with Fault Injection:
* Single Error Correction (SEC)
* Double-Error Detection (DED)
* Custome

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PIC24FJ64GU203, PIC24FJ64GU205. Please refer to the document for exact specifications by model.

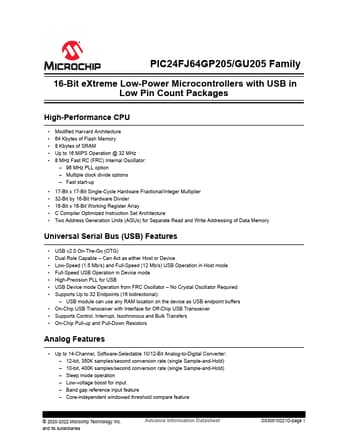

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PIC24FJ64GU203, PIC24FJ64GU205
Manufacturer
Microchip ↗
File Size
7.81 MB
Datasheet
PIC24FJ64GU205-Microchip.pdf
Description
16-Bit eXtreme Low-Power Microcontrollers
Note
This datasheet PDF includes multiple part numbers: PIC24FJ64GU203, PIC24FJ64GU205.
Please refer to the document for exact specifications by model.
