PIC18F25Q10, PIC18F24Q10 - High-Performance Microcontrollers

Name: PIC18F25Q10
SKU: PIC18F25Q10-1418446

Microchip

📥 Download Datasheet

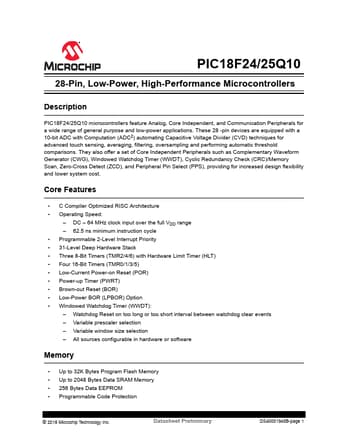

PIC18F25Q10 Datasheet Preview — This datasheet PDF includes multiple part numbers: PIC18F25Q10, PIC18F24Q10. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PIC18F25Q10, PIC18F24Q10
Manufacturer	Microchip
File Size	6.27 MB
Description	High-Performance Microcontrollers
Datasheet	PIC18F24Q10-Microchip.pdf
Note	This datasheet PDF includes multiple part numbers: PIC18F25Q10, PIC18F24Q10. Please refer to the document for exact specifications by model.

PIC18F25Q10 Product details

Description

PIC18F24/25Q10 microcontrollers feature Analog, Core Independent, and Communication Peripherals for a wide range of general purpose and low-power applications.

Features

C Compiler Optimized RISC Architecture.
Operating Speed:.
DC.
64 MHz clock input over the full VDD range.
62.5 ns minimum instruction cycle.
Programmable 2-Level Interrupt Priority.
31-Level Deep Hardware Stack.
Three 8-Bit Timers (TMR2/4/6) with Hardware Limit Timer (HLT).
Four 16-Bit Timers (TMR0/1/3/5).
Low-Current Power-on Reset (POR).
Power-up Timer (PWRT).
Brown-out Reset (BOR).
