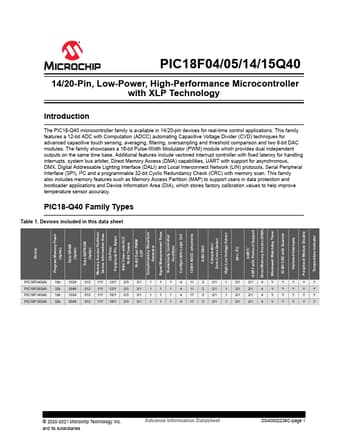

PIC18F06Q40, PIC18F04Q40 - High-Performance Microcontroller

Microchip

Datasheet Details

Part number	PIC18F06Q40, PIC18F04Q40
Manufacturer	Microchip
File Size	10.31 MB
Description	High-Performance Microcontroller
Datasheet	PIC18F04Q40-Microchip.pdf
Note	This datasheet PDF includes multiple part numbers: PIC18F06Q40, PIC18F04Q40. Please refer to the document for exact specifications by model.

a 12-bit ADC with Computation (ADCC) automating Capacitive Voltage Divider (CVD) techniques for advanced capacitive touch sensing, averaging, filtering, oversampling and threshold comparison and two 8-bit DAC modules. The family showcases a 16-bit Pulse-Width Modulator (PWM) module which provides dual independent outputs on the same time base. Additional features include vectored interrupt controller with fixed latency for handling interrupts, system bus arbiter, Direct Memory Access (DMA) capab.
