PIC16LF1705, PIC16F1705 - Cost-Effective 8-Bit Intelligent Analog Flash Microcontrollers

Name: PIC16LF1705
SKU: PIC16LF1705-1097922

Microchip

📥 Download Datasheet

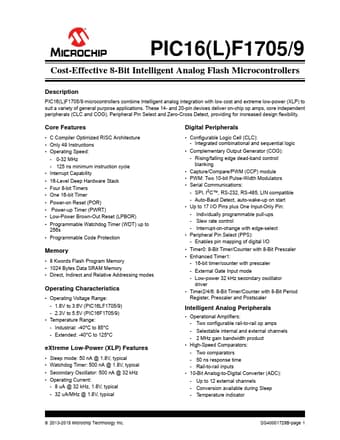

PIC16LF1705 Datasheet Preview — This datasheet PDF includes multiple part numbers: PIC16LF1705, PIC16F1705. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PIC16LF1705, PIC16F1705
Manufacturer	Microchip
File Size	4.85 MB
Description	Cost-Effective 8-Bit Intelligent Analog Flash Microcontrollers
Datasheet	PIC16F1705-Microchip.pdf
Note	This datasheet PDF includes multiple part numbers: PIC16LF1705, PIC16F1705. Please refer to the document for exact specifications by model.

PIC16LF1705 Product details

Description

PIC16(L)F1705/9 microcontrollers combine Intelligent analog integration with low cost and extreme low-power (XLP) to suit a variety of general purpose applications.

Features

C Compiler Optimized RISC Architecture.
Only 49 Instructions.
Operating Speed: - 0-32 MHz - 125 ns minimum instruction cycle.
Interrupt Capability.
16-Level Deep Hardware Stack.
Four 8-bit Timers.
One 16-bit Timer.
Power-on Reset (POR).
Power-up Timer (PWRT).
Low-Power Brown-Out Reset (LPBOR).
Programmable Watchdog Timer (WDT) up to 256s.
Programmable Code Protection Memory.
8 Kw.
