PIC16F1829LIN Datasheet (Microchip) - 8-bit Flash LIN/J2602 Microcontroller

PIC16F1829LIN, 8-bit Flash LIN/J2602 Microcontroller

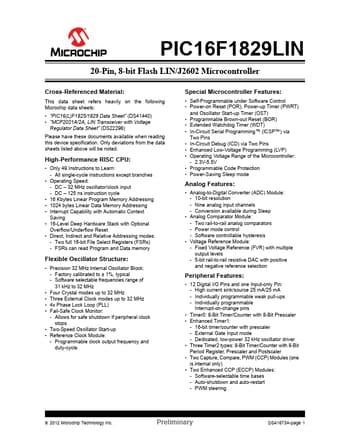

PIC16F1829LIN 20-Pin, 8-bit Flash LIN/J2602 Microcontroller Cross-Referenced Material: This data sheet refers heavily on the following Microchip data sheets: “PIC16(L)F1825/1829 Data Sheet” (DS41440) “MCP2021A/2A, LIN Transceiver with Voltage Regulator Data Sheet” (DS22298) Please have these documents available when reading this device specification.

Only deviations from the data sheets listed above will be noted.

High-Performance RISC CPU: Only 49 Instructions to

PIC16F1829LIN Features

* Self-Programmable under Software Control

* Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

* Programmable Brown-out Reset (BOR)

* Extended Watchdog Timer (WDT)

* In-Circuit Serial Programming™ (ICSP™) via Two Pins

* I
