PIC16F1788 - 28/40/44-Pin 8-Bit Advanced Analog Flash Microcontrollers

Name: PIC16F1788
SKU: PIC16F1788-1056581

Microchip

The PIC16F1788 by Microchip is a 28/40/44-Pin 8-Bit Advanced Analog Flash Microcontrollers. Below is the official datasheet preview.

Datasheet Details

Part number	PIC16F1788
Manufacturer	Microchip
File Size	5.87 MB
Description	28/40/44-Pin 8-Bit Advanced Analog Flash Microcontrollers
Datasheet	PIC16F1788-Microchip.pdf

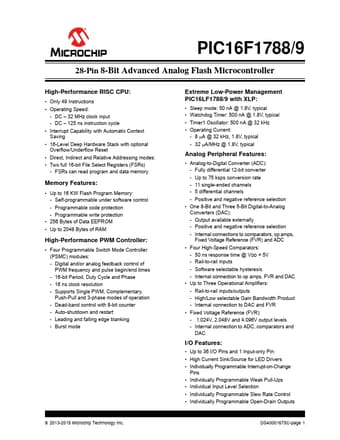

Additional preview pages of the PIC16F1788 datasheet.

Up to 16 KW Flash Program Memory: - Self-programmable under software control - Programmable code protection - Programmable write protection.
256 Bytes of Data EEPROM.
Up to 2048 Bytes of RAM High-Performance PWM Controller:.
Four Programmable Switch Mode Controller (PSMC) modules: - Digital and/or analog feedback control of PWM frequency and pulse begin/end times - 16-bit Period, Duty Cycle and Phase - 16 ns clock resolution - Supports Single PWM, Complement.
