PIC16F1713, PIC16LF1713 - Cost Effective 8-Bit Intelligent Analog Flash Microcontrollers

Microchip

The PIC16F1713 by Microchip is a Cost Effective 8-Bit Intelligent Analog Flash Microcontrollers. Below is the official datasheet preview.

📥 Download Datasheet

PIC16F1713 Cost Effective 8-Bit Intelligent Analog Flash Microcontrollers by Microchip - Datasheet Preview — Official preview page of the **PIC16F1713** Cost Effective 8-Bit Intelligent Analog Flash Microcontrollers datasheet (Microchip).

Datasheet Details

Part number	PIC16F1713, PIC16LF1713
Manufacturer	Microchip
File Size	5.74 MB
Description	Cost Effective 8-Bit Intelligent Analog Flash Microcontrollers
Datasheet	PIC16LF1713-Microchip.pdf
Note	This datasheet PDF includes multiple part numbers: PIC16F1713, PIC16LF1713. Please refer to the document for exact specifications by model.

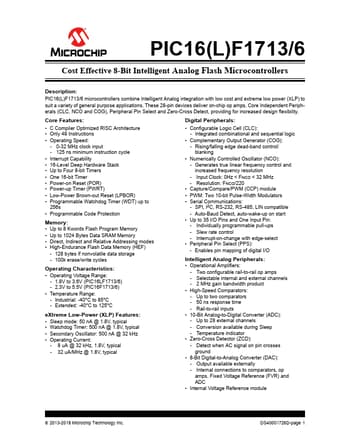

Additional preview pages of the PIC16F1713 datasheet.

PIC16F1713 Product details

Description

PIC16(L)F1713/6 microcontrollers combine Intelligent Analog integration with low cost and extreme low power (XLP) to suit a variety of general purpose applications.

Features

C Compiler Optimized RISC Architecture.
Only 49 Instructions.
Operating Speed: - 0-32 MHz clock input - 125 ns minimum instruction cycle.
Interrupt Capability.
16-Level Deep Hardware Stack.
Up to Four 8-bit Timers.
One 16-bit Timer.
Power-on Reset (POR).
Power-up Timer (PWRT).
Low-Power Brown-out Reset (LPBOR).
Programmable Watchdog Timer (WDT) up to 256s.
Programmable Code Protection Me.
