PAC1941-1 - Single/Multi-Channel Power Monitor

Name: PAC1941-1
SKU: PAC1941-1-1525072

Microchip

📥 Download Datasheet

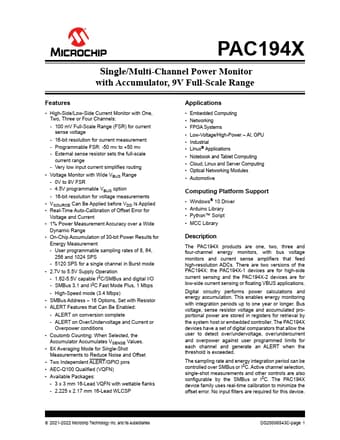

PAC1941-1 Datasheet Preview — Preview of PAC1941-1 PDF

Datasheet Details

Part number	PAC1941-1
Manufacturer	Microchip
File Size	1.18 MB
Description	Single/Multi-Channel Power Monitor
Datasheet	PAC1941-1-Microchip.pdf

PAC1941-1 Product details

Description

The PAC194X products are one, two, three and four-channel energy monitors, with bus voltage monitors and current sense amplifiers that feed high-resolution ADCs.

Features

High-Side/Low-Side Current Monitor with One, Two, Three or Four Channels: - 100 mV Full-Scale Range (FSR) for current sense voltage - 16-bit resolution for current measurement - Programmable FSR: -50 mv to +50 mv - External sense resistor sets the full-scale current range - Very low input current simplifies routing.
Voltage Monitor with Wide VBUS Range - 0V to 9V FSR - 4.5V programmable VBUS option - 16-bit resolution for voltage measurements.
