MIC94355 - 500mA LDO

Product Overview

Microchip

Datasheet Details

Part number	MIC94355
Manufacturer	Microchip
File Size	1.56 MB
Description	500mA LDO
Datasheet	MIC94355 Datasheet
Note	This datasheet PDF includes multiple part numbers: MIC94355, MIC94325. Please refer to the document for exact specifications by model.

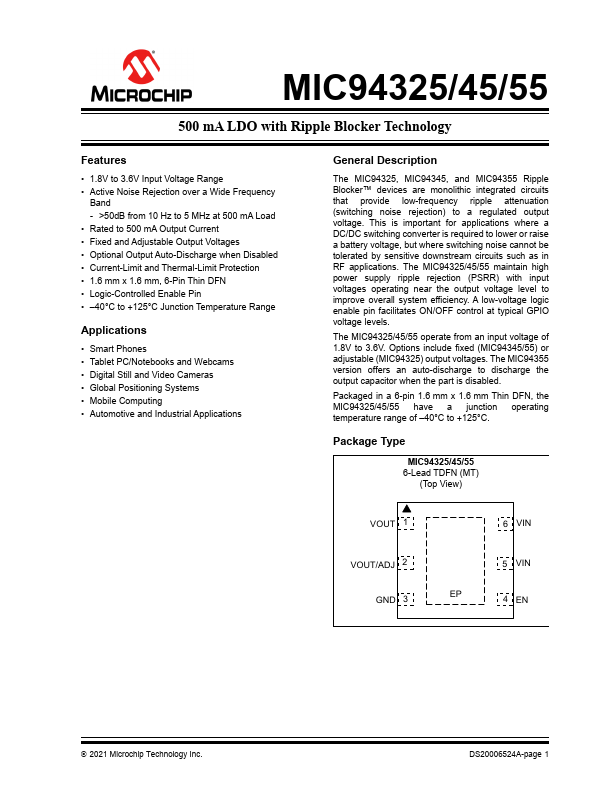

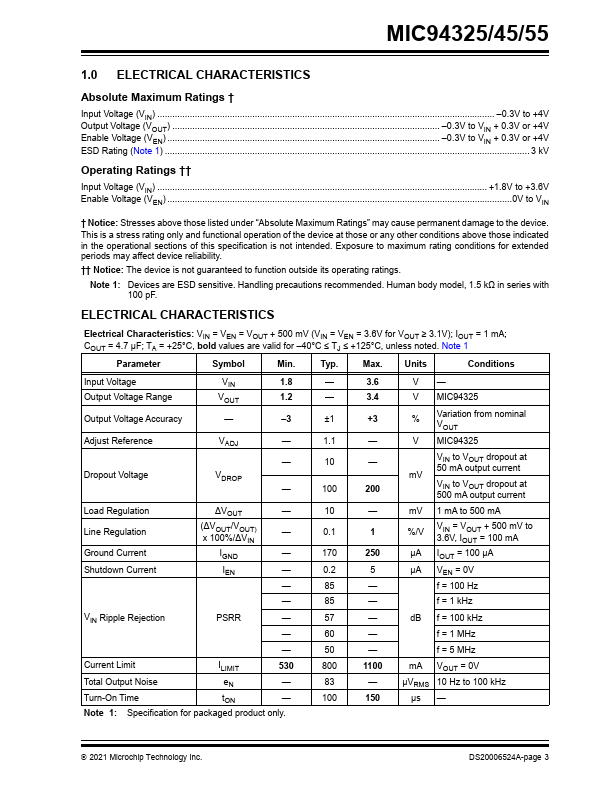

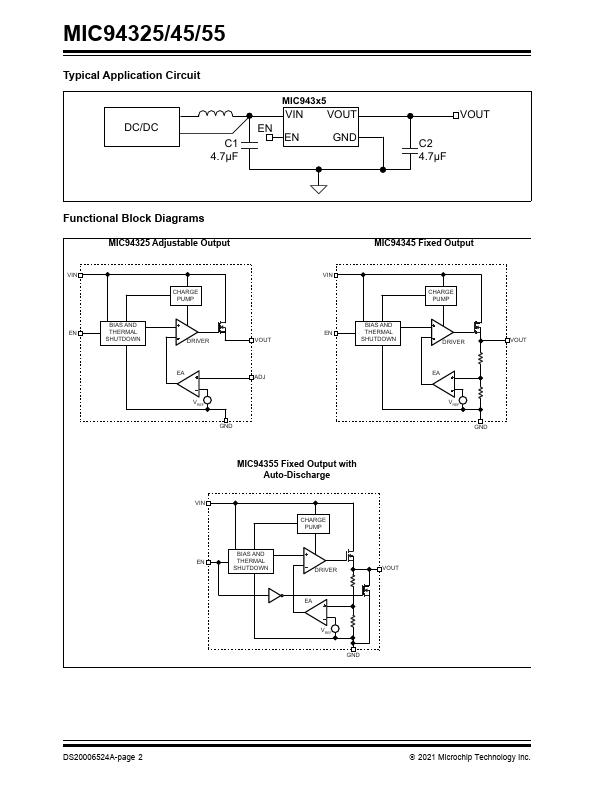

Additional preview pages of the MIC94355 datasheet.

Product details

Description

The MIC94325, MIC94345, and MIC94355 Ripple Blocker™ devices are monolithic integrated circuits that provide low-frequency ripple attenuation (switching noise rejection) to a regulated output voltage.

Features

1.8V to 3.6V Input Voltage Range.
Active Noise Rejection over a Wide Frequency Band - >50dB from 10 Hz to 5 MHz at 500 mA Load.
Rated to 500 mA Output Current.
Fixed and Adjustable Output Voltages.
Optional Output Auto-Discharge when Disabled.
Current-Limit and Thermal-Limit Protection.
1.6 mm x 1.6 mm, 6-Pin Thin DFN.
Logic-Controlled Enable Pin.
40°C to +125°C Junction Temperature Range.
