MIC5366, MIC5365 - High-Performance Single 150mA LDO

Microchip

The MIC5366 by Microchip is a High-Performance Single 150mA LDO. Below is the official datasheet preview.

📥 Download Datasheet

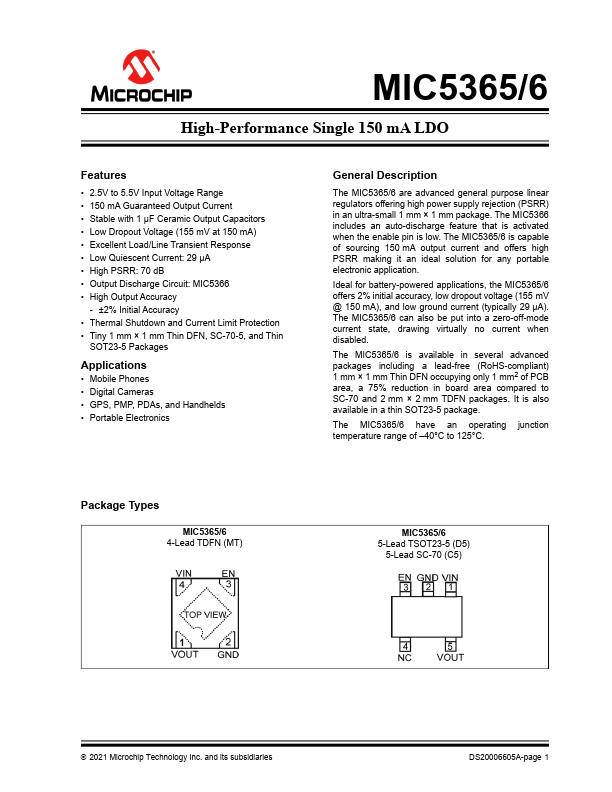

MIC5366 High-Performance Single 150mA LDO by Microchip - Datasheet Preview — Official preview page of the MIC5366 High-Performance Single 150mA LDO datasheet (Microchip).

Datasheet Details

Part number	MIC5366, MIC5365
Manufacturer	Microchip
File Size	2.85 MB
Description	High-Performance Single 150mA LDO
Datasheet	MIC5365-Microchip.pdf
Note	This datasheet PDF includes multiple part numbers: MIC5366, MIC5365. Please refer to the document for exact specifications by model.

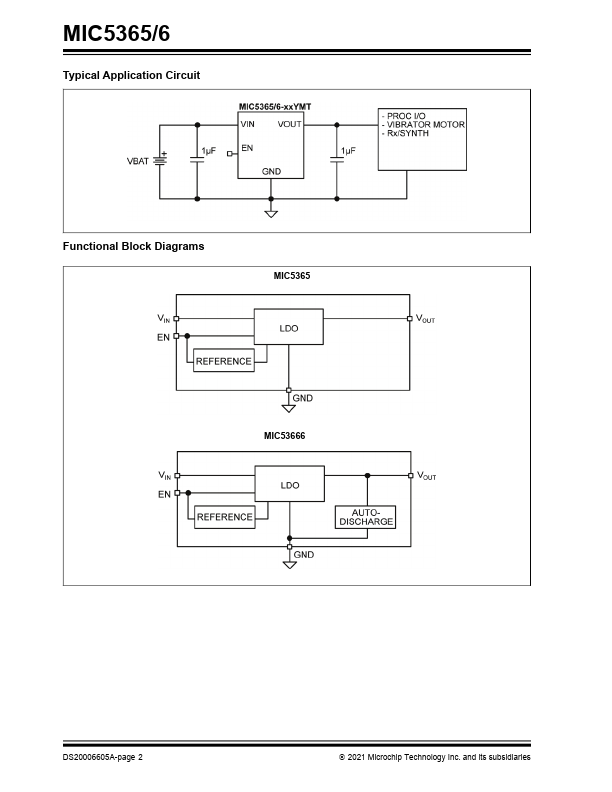

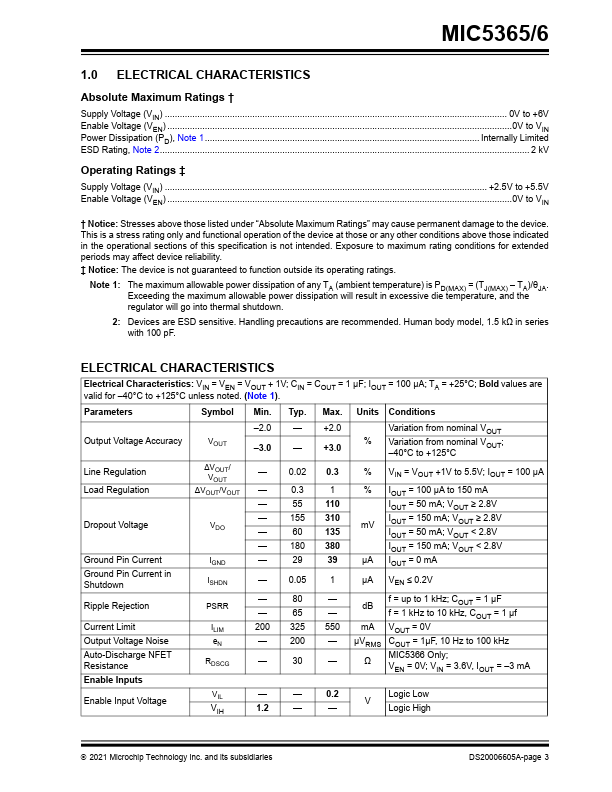

Additional preview pages of the MIC5366 datasheet.

MIC5366 Product details

Description

The MIC5365/6 are advanced general purpose linear regulators offering high power supply rejection (PSRR) in an ultra-small 1 mm × 1 mm package.

Features

2.5V to 5.5V Input Voltage Range.
150 mA Guaranteed Output Current.
Stable with 1 µF Ceramic Output Capacitors.
Low Dropout Voltage (155 mV at 150 mA).
Excellent Load/Line Transient Response.
Low Quiescent Current: 29 µA.
High PSRR: 70 dB.
Output Discharge Circuit: MIC5366.
High Output Accuracy - ±2% Initial Accuracy.
Thermal Shutdown and Current Limit Protection.
Tiny 1 mm × 1 mm Thin DFN, SC-70-.
