MIC2877 - 2MHz Synchronous Low Voltage Step-Up Regulator

Product Overview

Microchip

📥 Download Datasheet

MIC2877 2MHz Synchronous Low Voltage Step-Up Regulator by Microchip - Datasheet Preview — Datasheet preview – MIC2877

Datasheet Details

Part number	MIC2877
Manufacturer	Microchip
File Size	764.42 KB
Description	2MHz Synchronous Low Voltage Step-Up Regulator
Datasheet	MIC2877 Datasheet

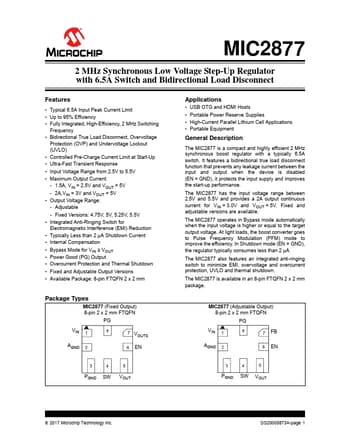

Additional preview pages of the MIC2877 datasheet.

Product details

Features

Typical 6.5A Input Peak Current Limit.
Up to 95% Efficiency.
Fully Integrated, High-Efficiency, 2 MHz Switching Frequency.
Bidirectional True Load Disconnect, Overvoltage Protection (OVP) and Undervoltage Lockout (UVLO).
Controlled Pre-Charge Current Limit at Start-Up.
Ultra-Fast Transient Response.
Input Voltage Range from 2.5V to 5.5V.
Maximum Output Current: - 1.5A, VIN = 2.5V and VOUT = 5V - 2A,VIN = 3V and VOUT = 5V.
