MD1821 - High-Speed 4-Channel MOSFET Driver

The MD1821 by Microchip is a High-Speed 4-Channel MOSFET Driver. Below is the official datasheet preview.

📥 Download Datasheet

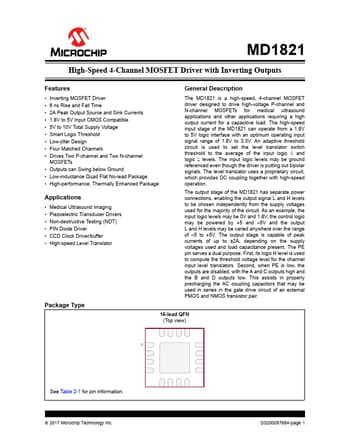

Official preview page of the MD1821 High-Speed 4-Channel MOSFET Driver datasheet (Microchip).

Datasheet Details

Part number MD1821
Manufacturer Microchip
File Size 640.10 KB
Description High-Speed 4-Channel MOSFET Driver
Datasheet download datasheet MD1821-Microchip.pdf
Additional preview pages of the MD1821 datasheet.

MD1821 Product details

Description

Inverting MOSFET Driver 6 ns Rise and Fall Time 2A Peak Output Source and Sink Currents 1.8V to 5V Input CMOS Compatible 5V to 10V Total Supply Voltage Smart Logic Threshold Low-jitter Design Four Matched Channels Drives Two P-channel and Two N-channel MOSFETs Outputs can Swing below Ground Low-inductance Quad Flat No-lead Package High-performance, Thermally Enhanced Package A
