MD0100 - Single/Dual-Channel High-Voltage Protection T/R Switch

Description

The MD0100 is a high-voltage, two-terminal, bi-directional, current-limiting protection device.

The two terminals are interchangeable.

Features

  • Up to ±100V Input Voltage Protection.
  • Low On-Resistance, 15Ω Typical.
  • Fast-Switching Speed.
  • Effective Simple Two-Terminal Device.
  • No External Supplies Needed.

📥 Download Datasheet

Datasheet Details

Part number MD0100
Manufacturer Microchip
File Size 1.16 MB
Description Single/Dual-Channel High-Voltage Protection T/R Switch
Datasheet download datasheet MD0100 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MD0100 High Voltage Protection T/R Switch Supertex
MD0101 High Voltage Protection T/R Switch Supertex
MD0105 Four-Channel High Voltage Protection T/R Switch Supertex
MD0107 Auto Damping Device Supertex
MD01 SURFACE MOUNT BRIDGE RECTIFIER Gulf Semiconductor

Other Datasheets by Microchip

Part Number Description
MD0101 High-Voltage Protection T/R Switch
MD0105 4-Channel High-Voltage Protection T/R Switch

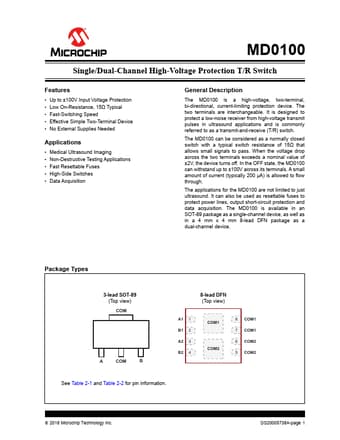

Full PDF Text Transcription

Click to expand full text
MD0100 Single/Dual-Channel High-Voltage Protection T/R Switch Features • Up to ±100V Input Voltage Protection • Low On-Resistance, 15Ω Typical • Fast-Switching Speed • Effective Simple Two-Terminal Device • No External Supplies Needed Applications • Medical Ultrasound Imaging • Non-Destructive Testing Applications • Fast Resettable Fuses • High-Side Switches • Data Acquisition General Description The MD0100 is a high-voltage, two-terminal, bi-directional, current-limiting protection device. The two terminals are interchangeable. It is designed to protect a low-noise receiver from high-voltage transmit pulses in ultrasound applications and is commonly referred to as a transmit-and-receive (T/R) switch.
