MCP6V31U - 300 kHz Zero-Drift Op Amps

Product Overview

Microchip

Part number	MCP6V31U
Manufacturer	Microchip
File Size	4.43 MB
Description	300 kHz Zero-Drift Op Amps
Datasheet	MCP6V31U Datasheet
Note	This datasheet PDF includes multiple part numbers: MCP6V31U, MCP6V31. Please refer to the document for exact specifications by model.

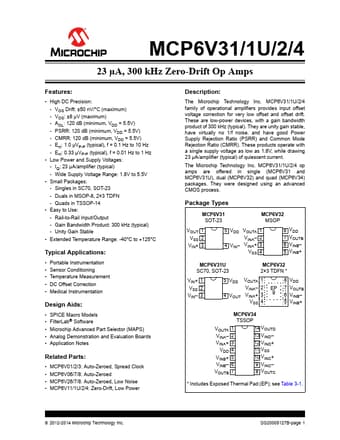

Additional preview pages of the MCP6V31U datasheet.

The Microchip Technology Inc.

High DC Precision: - VOS Drift: ±50 nV/°C (maximum) - VOS: ±8 µV (maximum) - AOL: 120 dB (minimum, VDD = 5.5V) - PSRR: 120 dB (minimum, VDD = 5.5V) - CMRR: 120 dB (minimum, VDD = 5.5V) - Eni: 1.0 µVP-P (typical), f = 0.1 Hz to 10 Hz - Eni: 0.33 µVP-P (typical), f = 0.01 Hz to 1 Hz.
Low Power and Supply Voltages: - IQ: 23 µA/amplifier (typical) - Wide Supply Voltage Range: 1.8V to 5.5V.
Small Packages: - Singles in SC70, SOT-23 - Duals in MSOP-8, 2×3 TDFN - Quads in T.
