LAN9313i, LAN9313 Three Port 10/100 Managed Ethernet Switch

LAN9313i Description

LAN9313/LAN9313i Three Port 10/100 Managed Ethernet Switch with MII Highlights * High performance and full .

LAN9313i Features

* - General Purpose Timer - Serial EEPROM interface (I2C master or Microwire™ master) for non-managed configuration - Programmable GPIOs/LEDs
* Single 3.3V power supply
* Available in Commercial & Industrial Temp. Ranges  2008-2016 Microchip Technology Inc. DS00002288A-page 1 LAN93

LAN9313i Applications

* Cable, satellite, and IP set-top boxes
* Digital televisions
* Digital video recorders
* VoIP/Video phone systems
* Home gateways
* Test/Measurement equipment
* Industrial automation systems Key Benefits
* Ethernet Switch Fabric - 32K

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LAN9313i, LAN9313. Please refer to the document for exact specifications by model.

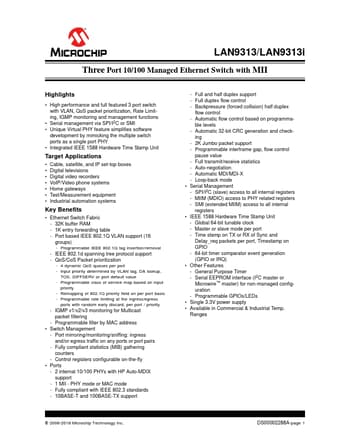

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LAN9313i, LAN9313
Manufacturer
Microchip ↗
File Size
1.88 MB
Datasheet
LAN9313-Microchip.pdf
Description
Three Port 10/100 Managed Ethernet Switch
Note
This datasheet PDF includes multiple part numbers: LAN9313i, LAN9313.
Please refer to the document for exact specifications by model.
