LAN7800 SuperSpeed USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller

LAN7800 Description

LAN7800 SuperSpeed USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller Highlights * Single Chip SuperSpeed (SS) USB 3.1 Gen 1 to 10/100/1000 Et.

LAN7800 Features

* - 8 GPIOs - Supports bus and self-powered operation - Variable voltage I/O supply (1.8V-3.3V)
* Software Support - Windows 7, 8, 8.1, and 10 driver - Linux driver - Mac OS driver - UEFI support - PXE support - Windows line command OTP/EEPROM programming and testing utility
* Packagin

LAN7800 Applications

* Automotive Infotainment
* Notebook/Tablet Docking Stations
* Detachable Laptops
* USB Port Replicators
* Standalone USB to Ethernet Dongles
* Embedded Systems / CE Devices
* Set-Top Boxes / Video Recorders
* Test Instrumentation / Ind

📥 Download Datasheet

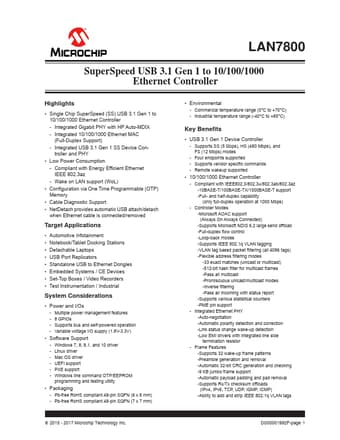

Preview of LAN7800 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LAN7800
Manufacturer
Microchip ↗
File Size
1.78 MB
Datasheet
LAN7800-Microchip.pdf
Description
SuperSpeed USB 3.1 Gen 1 to 10/100/1000 Ethernet Controller
