DSA1125 - Low-Jitter Precision CMOS Oscillator

Download the DSA1125 datasheet PDF (DSA1101 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for low-jitter precision cmos oscillator.

Description

The DSA1101 and DSA1121 series of high performance oscillators utilize a proven silicon MEMS technology to provide excellent jitter and stability over a wide range of supply voltages and temperatures.

Features

  • Automotive AEC-Q100 Qualified.
  • Two Rise/Fall Time Options for EMI Reduction.
  • Low RMS Phase Jitter:.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DSA1101-Microchip.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by Microchip
  • DSA1121 - Low-Jitter Precision CMOS Oscillator
  • DSA1123 - Low-Jitter Precision LVDS Oscillator
  • DSA1124 - Low-Jitter Precision HCSL Oscillator
  • DSA1101 - Low-Jitter Precision CMOS Oscillator
  • DSA1103 - Low-Jitter Precision LVDS Oscillator
  • DSA1104 - Low-Jitter Precision HCSL Oscillator
  • DSA1105 - Low-Jitter Precision CMOS Oscillator
  • DSA1001 - 1.8V-3.3V Low-Power Precision CMOS Oscillators

Full PDF Text Transcription

Click to expand full text

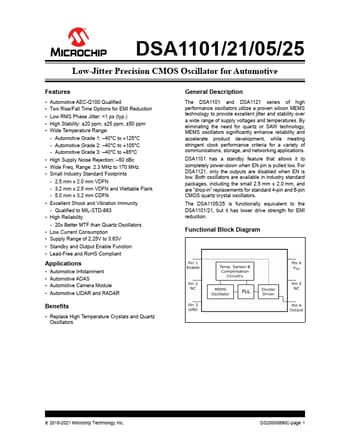

DSA1101/21/05/25 Low-Jitter Precision CMOS Oscillator for Automotive Features • Automotive AEC-Q100 Qualified • Two Rise/Fall Time Options for EMI Reduction • Low RMS Phase Jitter: <1 ps (typ.) • High Stability: ±20 ppm, ±25 ppm, ±50 ppm • Wide Temperature Range: - Automotive Grade 1: –40°C to +125°C - Automotive Grade 2: –40°C to +105°C - Automotive Grade 3: –40°C to +85°C • High Supply Noise Rejection: –50 dBc • Wide Freq. Range: 2.3 MHz to 170 MHz • Small Industry Standard Footprints - 2.5 mm x 2.0 mm VDFN - 3.2 mm x 2.5 mm VDFN and Wettable Flank - 5.0 mm x 3.2 mm CDFN • Excellent Shock and Vibration Immunity - Qualified to MIL-STD-883 • High Reliability - 20x Better MTF than Quartz Oscillators • Low Current Consumption • Supply Range of 2.25V to 3.
