ATSAMR30M18A - IEEE 802.15.4 Sub-1GHz Module

ATSAMR30M18A Description

ATSAMR30M18A SAMR30 IEEE® 802.15.4™ Sub-1GHz Module Datasheet Introduction The ATSAMR30M18A is an IEEE® 802.15.4™-2003/2006/2011 compliant RF module f.
of each peripheral, refer to the ATSAMR30E18A datasheet. Processor. ARM® Cortex®-M0+ CPU running at up to 48 MHz.

ATSAMR30M18A Features

* Processor
* ARM® Cortex®-M0+ CPU running at up to 48 MHz
* Single-cycle hardware multiplier
* Micro Trace Buffer (MTB)
* Memories
* 256 KB in-system self-programmable Flash
* 32 KB SRAM
* 8 KB low-power RAM
* System

ATSAMR30M18A Applications

* This module combines the SAMR30E18A SiP (System in Package), 16 MHz crystal oscillator, discrete balun, lumped element harmonic reject filter and required RF shielding in a compact 12.7mm x 11.0mm design. The module as implemented on the Xplained Pro development board has passed regulatory approval

📥 Download Datasheet

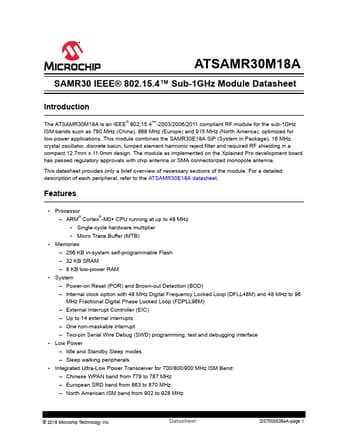

Preview of ATSAMR30M18A PDF
datasheet Preview Page 2 datasheet Preview Page 3
