ATSAMD20J15, ATSAMD20E14 32-bit Cortex-M0+ MCU

Microchip

Description

Low-Power, 32-bit Cortex-M0+ MCUs with 12-bit ADC, 10-bit DAC, 256-Channel PTC, RTC, and SERCOM SAM D20 Family .
List21 6.

📥 Download Datasheet

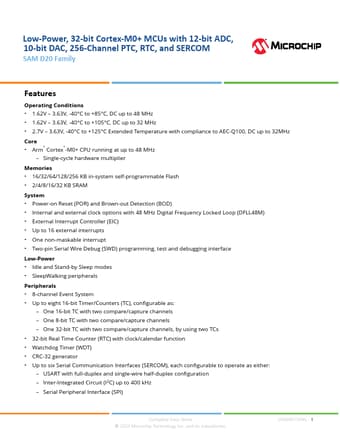

ATSAMD20J15 Datasheet Preview — This datasheet PDF includes multiple part numbers: ATSAMD20J15, ATSAMD20E14. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ATSAMD20J15, ATSAMD20E14
Manufacturer: Microchip ↗
File Size: 7.02 MB
Datasheet: ATSAMD20E14-Microchip.pdf
Description: 32-bit Cortex-M0+ MCU
Note: This datasheet PDF includes multiple part numbers: ATSAMD20J15, ATSAMD20E14.
Please refer to the document for exact specifications by model.

Features

* Operating Conditions
* 1.62V
* 3.63V, -40°C to +85°C, DC up to 48 MHz
* 1.62V
* 3.63V, -40°C to +105°C, DC up to 32 MHz
* 2.7V
* 3.63V, -40°C to +125°C Extended Temperature with compliance to AEC-Q100, DC up to 32MHz Core
* Arm® Cortex®-M0+ CPU
