25AA160C - 16-Kbit SPI Bus Serial EEPROM

Datasheet Summary

Description

The Microchip Technology Inc.

25XX160C/D(1) are 16-Kbit Serial Electrically Erasable PROMs (EEPROM).

Features

  • 10 MHz Maximum Clock Speed.
  • Low-Power CMOS Technology: - Maximum Write current: 5 mA at 5.5V - Read current: 5 mA at 5.5V, 10 MHz - Standby current: 5 µA at 5.5V.
  • 2048 x 8-bit Organization.
  • 16-Byte Page (“C” version devices).
  • 32-Byte Page (“D” version devices).
  • Self-Timed Erase and Write Cycles (5 ms maximum).
  • Block Write Protection: - Protect none, 1/4, 1/2 or all of array.
  • Built-In Write Protection: - Power-.

📥 Download Datasheet

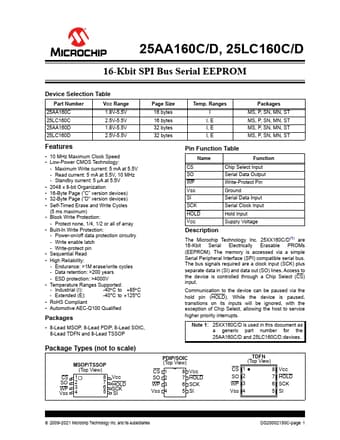

Datasheet preview – 25AA160C

Datasheet Details

Part number 25AA160C
Manufacturer Microchip
File Size 598.37 KB
Description 16-Kbit SPI Bus Serial EEPROM
Datasheet download datasheet 25AA160C Datasheet
Additional preview pages of the 25AA160C datasheet.

📁 Similar Datasheet

  • 25AA160 - 16K SPI Bus Serial EEPROM (MicrochipTechnology)
  • 25AA160A - 16K SPI Bus Serial EEPROM (Microchip Technology)
  • 25AA160B - 16K SPI Bus Serial EEPROM (Microchip Technology)
  • 25AA1024 - 1 Mbit SPI Bus Serial EEPROM (Microchip Technology)
  • 25AA128 - 128K SPI Bus Serial EEPROM (Microchip Technology)
  • 25AA010A - 1K SPI Bus Serial EEPROM (Microchip Technology)
  • 25AA020A - 2K SPI Bus Serial EEPROM (Microchip Technology)
  • 25AA02E48 - 2K SPI Bus Serial EEPROM (Microchip Technology)
  • 25AA02UID - 2K SPI Bus Serial EEPROM (Microchip Technology)
  • 25AA040 - 4K SPI Bus Serial EEPROM (MicrochipTechnology)
Other Datasheets by Microchip

Full PDF Text Transcription

Click to expand full text
25AA160C/D, 25LC160C/D 16-Kbit SPI Bus Serial EEPROM Device Selection Table Part Number 25AA160C 25LC160C 25AA160D 25LC160D VCC Range 1.8V-5.5V 2.5V-5.5V 1.8V-5.5V 2.5V-5.5V Page Size 16 bytes 16 bytes 32 bytes 32 bytes Temp. Ranges I I, E I, E I, E Packages MS, P, SN, MN, ST MS, P, SN, MN, ST MS, P, SN, MN, ST MS, P, SN, MN, ST Features • 10 MHz Maximum Clock Speed • Low-Power CMOS Technology: - Maximum Write current: 5 mA at 5.5V - Read current: 5 mA at 5.5V, 10 MHz - Standby current: 5 µA at 5.
Published: |
