24AA02 - 2K I2C Serial EEPROM

Description

The Microchip Technology Inc.

24XX02(1) is a 2-Kbit Electrically Erasable PROM (EEPROM).

The device is organized as one block of 256 x 8-bit memory with a two-wire serial interface.

Features

  • Single Supply with Operation down to 1.7V for 24AA02 and 24FC02 Devices, 2.5V for 24LC02B Devices.
  • Low-Power CMOS Technology: - Read current 1 mA, maximum - Standby current 1 µA, maximum (I-temp. ).
  • Two-Wire Serial Interface, I2C Compatible.
  • Schmitt Trigger Inputs for Noise Suppression.
  • Output Slope Control to Eliminate Ground Bounce.
  • 100 kHz, 400 kHz and 1 MHz Compatibility.
  • Page Write Time: 5 ms, Maximum.
  • Self-Timed Erase/.

📥 Download Datasheet

📁 Similar Datasheet

  • 24AA024 - 2K I2C Serial EEPROM (Microchip Technology)
  • 24AA025 - 2K I2C Serial EEPROM (Microchip Technology)
  • 24AA025E48 - 2K I2C Serial EEPROMs (Microchip Technology)
  • 24AA02E48 - 2K I2C Serial EEPROMs (Microchip Technology)
  • 24AA1025 - 1024K I2C CMOS Serial EEPROM (Microchip Technology)
  • 24AA32 - 32K 1.8V I2C Smart Serial EEPROM (MicrochipTechnology)
  • 24AA512 - 512K I2C Serial EEPROM (Microchip Technology)
  • 24AA515 - 512K I2C CMOS Serial EEPROM (MicrochipTechnology)
  • 24AA64 - 64K I2C Serial EEPROM (Microchip Technology)
  • 24A05 - UPC24A05 (NEC)
Other Datasheets by Microchip

Full PDF Text Transcription

Click to expand full text

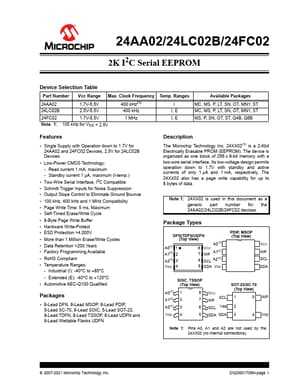

24AA02/24LC02B/24FC02 2K I2C Serial EEPROM Device Selection Table Part Number VCC Range Max. Clock Frequency 24AA02 1.7V-5.5V 400 kHz(1) 24LC02B 2.5V-5.5V 400 kHz 24FC02 1.7V-5.5V 1 MHz Note 1: 100 kHz for VCC < 2.5V Temp. Ranges I I, E I, E Available Packages MC, MS, P, LT, SN, OT, MNY, ST MC, MS, P, LT, SN, OT, MNY, ST MS, P, SN, OT, ST, Q4B, Q6B Features • Single Supply with Operation down to 1.7V for 24AA02 and 24FC02 Devices, 2.5V for 24LC02B Devices • Low-Power CMOS Technology: - Read current 1 mA, maximum - Standby current 1 µA, maximum (I-temp.
