TC1225 - Inverting Dual Charge Pump Voltage Converters

Name: TC1225
SKU: TC1225-505104

Microchip Technology

📥 Download Datasheet

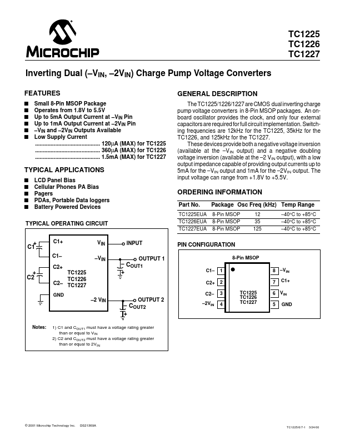

TC1225 Datasheet Preview — Preview of TC1225 PDF

Datasheet Details

Part number	TC1225
Manufacturer	Microchip Technology
File Size	1.17 MB
Description	Inverting Dual Charge Pump Voltage Converters
Datasheet	TC1225_MicrochipTechnology.pdf

TC1225 Product details

Description

The TC1225/1226/1227 are CMOS dual inverting charge pump voltage converters in 8-Pin MSOP packages. VIN output) and a negative doubling voltage inversion (available at the 2 VIN output), wi

Features

s s s s s s Small 8-Pin MSOP Package Operates from 1.8V to 5.5V Up to 5mA Output Current at.
VIN Pin Up to 1mA Output Current at.
2VIN Pin.
VIN and.
2VIN Outputs Available Low Supply Current 120µA (MAX) for TC1225 360µA (MAX) for TC1226 1.5mA (MAX) for TC1227.
