SST25PF020B 2 Mbit 2.3-3.6V SPI Serial Flash

Microchip Technology

SST25PF020B Description

SST25PF020B 2 Mbit 2.3-3.6V SPI Serial Flash .
The 25 series Serial Flash family features a four-wire, SPI-compatible interface that allows for a low pin-count package which occupies less board spa.

SST25PF020B Features

* Single Voltage Read and Write Operations - 2.3-3.6V
* Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3
* High Speed Clock Frequency - 80 MHz (2.7-3.6V operation) - 50 MHz (2.3-2.7V operation)
* Superior Reliability - Endurance: 100,000 Cycles (typic

📥 Download Datasheet

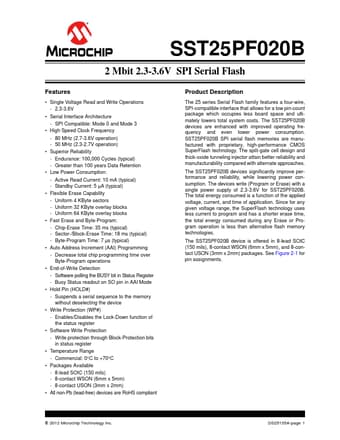

SST25PF020B Datasheet Preview — Preview of SST25PF020B PDF

Datasheet Details

Part number: SST25PF020B
Manufacturer: Microchip ↗ Technology
File Size: 307.68 KB
Datasheet: SST25PF020B_MicrochipTechnology.pdf
Description: 2 Mbit 2.3-3.6V SPI Serial Flash
