PIC16LC711, PIC16LC71X - (PIC16LC71X) 8-Bit CMOS Microcontrollers

Microchip Technology

The PIC16LC711 by Microchip Technology is a (PIC16LC71X) 8-Bit CMOS Microcontrollers. Below is the official datasheet preview.

📥 Download Datasheet

PIC16LC711 (PIC16LC71X) 8-Bit CMOS Microcontrollers by Microchip Technology - Datasheet Preview — Official preview page of the **PIC16LC711** (PIC16LC71X) 8-Bit CMOS Microcontrollers datasheet (Microchip Technology).

Datasheet Details

Part number	PIC16LC711, PIC16LC71X
Manufacturer	Microchip Technology
File Size	1.58 MB
Description	(PIC16LC71X) 8-Bit CMOS Microcontrollers
Datasheet	PIC16LC71X_MicrochipTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: PIC16LC711, PIC16LC71X. Please refer to the document for exact specifications by model.

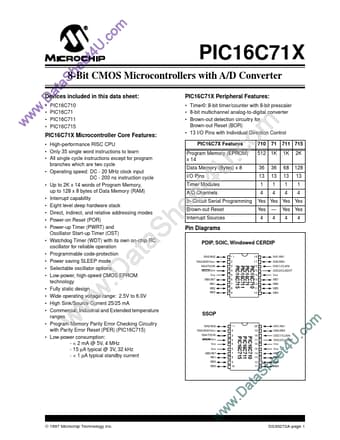

Additional preview pages of the PIC16LC711 datasheet.

PIC16LC711 Product details

Description

3 2.0 PIC16C71X Device Varieties 5 3.0 Architectural Overview 7 4.0 Memory Organization 11 5.0 I/O Ports 25 6.0 Timer0 Module 31 7.0 Analog-to-Digital Converter (A/D) Module 37 8.0 Special

Features

Timer0: 8-bit timer/counter with 8-bit prescaler.
8-bit multichannel analog-to-digital converter.
Brown-out detection circuitry for Brown-out Reset (BOR).
13 I/O Pins with Individual Direction Control PIC16C7X Features ee U 4 t m o . c PIC16C71X PIC16C71X Microcontroller Core Features:.
High-performance RISC CPU.
Only 35 single word instructions to learn.
All single cycle instructions except for program branches which are two c.
