MCP9805 - Memory Module Digital Temperature Sensor

Microchip Technology

The MCP9805 by Microchip Technology is a Memory Module Digital Temperature Sensor. Below is the official datasheet preview.

Datasheet Details

Part number	MCP9805
Manufacturer	Microchip Technology
File Size	557.57 KB
Description	Memory Module Digital Temperature Sensor
Datasheet	MCP9805_MicrochipTechnology.pdf

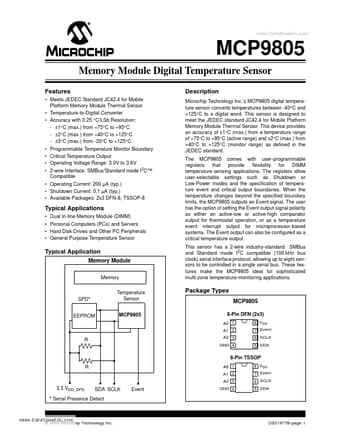

Additional preview pages of the MCP9805 datasheet.

Microchip Technology Inc.’s MCP9805 digital temperature sensor converts temperatures between -40°C and +125°C to a digital word.

Meets JEDEC Standard JC42.4 for Mobile Platform Memory Module Thermal Sensor.
Temperature-to-Digital Converter.
Accuracy with 0.25 °C/LSb Resolution: - ±1°C (max. ) from +75°C to +95°C - ±2°C (max. ) from +40°C to +125°C - ±3°C (max. ) from -20°C to +125°C.
Programmable Temperature Monitor Boundary.
Critical Temperature Output.
Operating Voltage Range: 3.0V to 3.6V.
2-wire Interface: SMBus/Standard mode I2C™ Compatible.
Operat.
