MCP4013, MCP4011 - (MCP4011 - MCP4014) Low-Cost 64-Step Volatile Digital POT

Microchip Technology

The MCP4013 by Microchip Technology is a (MCP4011 - MCP4014) Low-Cost 64-Step Volatile Digital POT. Below is the official datasheet preview.

📥 Download Datasheet

MCP4013 (MCP4011 - MCP4014) Low-Cost 64-Step Volatile Digital POT by Microchip Technology - Datasheet Preview — Official preview page of the **MCP4013** (MCP4011 - MCP4014) Low-Cost 64-Step Volatile Digital POT datasheet (Microchip Technology).

Datasheet Details

Part number	MCP4013, MCP4011
Manufacturer	Microchip Technology
File Size	4.09 MB
Description	(MCP4011 - MCP4014) Low-Cost 64-Step Volatile Digital POT
Datasheet	MCP4011_MicrochipTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: MCP4013, MCP4011. Please refer to the document for exact specifications by model.

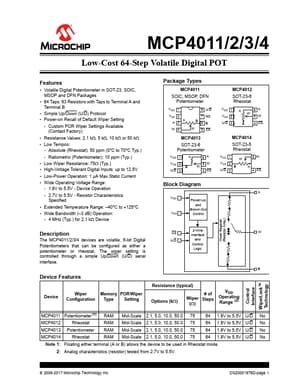

Additional preview pages of the MCP4013 datasheet.

MCP4013 Product details

Description

The MCP4011/2/3/4 devices are volatile, 6-bit Digital Potentiometers that can be configured as either a potentiometer or rheostat.

Features

Volatile Digital Potentiometer in SOT-23, SOIC, MSOP and DFN packages.
64 Taps: 63 Resistors with Taps to terminal A and terminal B.
Simple Up/Down (U/D) Protocol.
Power-on Recall of Default Wiper Setting - Custom POR wiper settings available (contact factory).
Resistance Values: 2.1 kΩ, 5 kΩ, 10 kΩ or 50 kΩ.
Low Tempco: - Absolute (Rheostat): 50 ppm (0°C to 70°C typ. ) - Ratiometric (Potentiometer): 10 ppm (typ. ).
Low Wiper Resistan.
