MCP3002 - 2.7V Dual Channel 10-Bit A/D Converter

Microchip Technology

📥 Download Datasheet

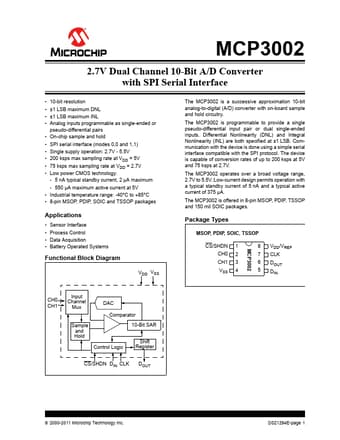

MCP3002 Datasheet Preview — Preview of MCP3002 PDF

Datasheet Details

Part number	MCP3002
Manufacturer	Microchip Technology
File Size	0.97 MB
Description	2.7V Dual Channel 10-Bit A/D Converter
Datasheet	MCP3002_MicrochipTechnology.pdf

MCP3002 Product details

Description

10-bit resolution ±1 LSB maximum DNL ±1 LSB maximum INL Analog inputs programmable as single-ended or pseudo-differential pairs On-chip sample and hold SPI serial interface (modes 0,0 and 1,1) Single supply operation: 2.7V - 5.5V 200 ksps max sampling rate at VDD = 5V 75 ksps max sampling rate at VDD = 2.7V Low power CMOS technology: - 5 nA typical standby current, 2 µA maximum - 550 µA maximum a

Features

2.7V Dual Channel 10-Bit A/D Converter with SPI Serial Interface.
