16F873A - PIC16F873A

Features

  • Timer0: 8-bit timer/counter with 8-bit prescaler.
  • Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock.
  • Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler.
  • Two Capture, Compare, PWM modules - Capture is 16-bit, max. resolution is 12.5 ns - Compare is 16-bit, max. resolution is 200 ns - PWM max. resolution is 10-bit.
  • Synchronous Serial Port (SSP) with SPI (Master mode) a.

📥 Download Datasheet

Datasheet preview – 16F873A

📁 Similar Datasheet

  • 16F870 - PIC16F870 (Microchip)
  • 16F874 - PIC16F874 (Microchip)
  • 16F80 - STANDARD RECOVERY DIODES (International Rectifier)
  • 16F020 - Fast Recovery Epitaxial Diodes (Jingdao)
  • 16F020C - Fast Recovery Epitaxial Diodes (Jingdao Electronic)
  • 16F10 - STANDARD RECOVERY DIODES (International Rectifier)
  • 16F100 - STANDARD RECOVERY DIODES (International Rectifier)
  • 16F120 - STANDARD RECOVERY DIODES (International Rectifier)
  • 16F120 - DIODE (DSI)
  • 16F1788 - 28/40/44-Pin 8-Bit Advanced Analog Flash Microcontrollers (Microchip)
Other Datasheets by Microchip Technology
  • 16F873 - PIC16F873
  • 16F87 - PIC16F87
  • 16F871 - 28/40-Pin 8-Bit CMOS FLASH Microcontrollers
  • 16F872 - 28-Pin/ 8-Bit CMOS FLASH Microcontroller
  • 16F874A - PIC16F874A
  • 16F876 - 28/40-pin 8-Bit CMOS FLASH Microcontrollers
  • 16F876A - PIC16F876A
  • 16F877 - 28/40-pin 8-Bit CMOS FLASH Microcontrollers

Full PDF Text Transcription

Click to expand full text

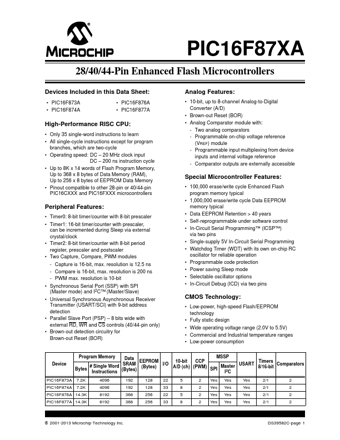

PIC16F87XA 28/40/44-Pin Enhanced Flash Microcontrollers Devices Included in this Data Sheet: • PIC16F873A • PIC16F874A • PIC16F876A • PIC16F877A High-Performance RISC CPU: • Only 35 single-word instructions to learn • All single-cycle instructions except for program branches, which are two-cycle • Operating speed: DC – 20 MHz clock input DC – 200 ns instruction cycle • Up to 8K x 14 words of Flash Program Memory, Up to 368 x 8 bytes of Data Memory (RAM), Up to 256 x 8 bytes of EEPROM Data Memory • Pinout compatible to other 28-pin or 40/44-pin PIC16CXXX and PIC16FXXX microcontrollers Peripheral Features: • Timer0: 8-bit timer/counter with 8-bit prescaler • Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock • Timer2: 8-bit timer/coun
