LF104ED, LF100ED - Dual Output Ultra-Miniature 1W SMT DC/DC Converters

MicroPowerDirect

📥 Download Datasheet

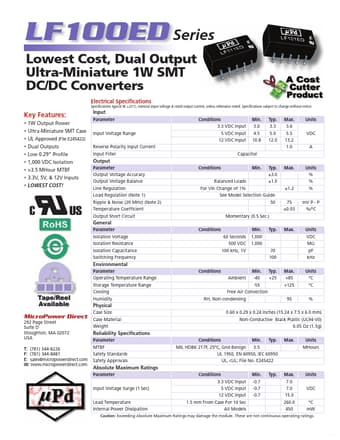

LF104ED Datasheet Preview — This datasheet PDF includes multiple part numbers: LF104ED, LF100ED. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LF104ED, LF100ED
Manufacturer	MicroPowerDirect
File Size	240.64 KB
Description	Dual Output Ultra-Miniature 1W SMT DC/DC Converters
Datasheet	LF100ED-MicroPowerDirect.pdf
Note	This datasheet PDF includes multiple part numbers: LF104ED, LF100ED. Please refer to the document for exact specifications by model.

LF104ED Product details

Description

Pin Description -Vin 6 NC +Vin 7 +Vout NC 8 NC Common 9 NC -Vout 10 NC NC = No Connection For applications requiring very low output noise levels, a simple LC ﬁlter should be effective.5. It is recommended that a fuse be used on the input of a power supply for protection.See the Model Selection table above for the correct rating.Recommended Solder Proﬁle Mechanical Dimensions Board Layout Notes: All dimensions are typical in inches (mm) Tolerance x.xx = ±0.01 (±0.25)

Features

1W Output Power.
Ultra-Miniature SMT Case.
UL Approved (File E245422).
Dual Outputs.
Low 0.29” Proﬁle.
1,000 VDC Isolation.
>3.5 MHour MTBF.
3.3V, 5V, & 12V Inputs.
LOWEST COST! Input Parameter Input Voltage Range Reverse Polarity Input Current Input Filter Capacitor Conditions Balanced Loads For Vin Change of 1% See Model Selection Guide 50 Momentary (0.5 Sec. ) Conditions 60 Seconds 500 VDC 100 kHz, 1V Min. 1,00.
