ML2713 - ML2713 Radio IF Transceiver

Micro Linear

The ML2713 by Micro Linear is a ML2713 Radio IF Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

ML2713 ML2713 Radio IF Transceiver by Micro Linear - Datasheet Preview — Official preview page of the **ML2713** ML2713 Radio IF Transceiver datasheet (Micro Linear).

Datasheet Details

Part number	ML2713
Manufacturer	Micro Linear
File Size	287.36 KB
Description	ML2713 Radio IF Transceiver
Datasheet	ML2713_MicroLinearCorporation.pdf

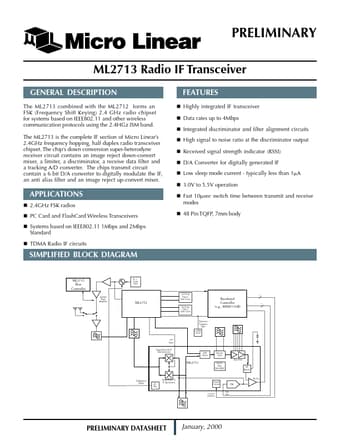

Additional preview pages of the ML2713 datasheet.

ML2713 Product details

Description

The ML2713 combined with the ML2712 forms an FSK (Frequency Shift Keying) 2.4 GHz radio chipset for systems based on IEEE802.11 and other wireless communication protocols using the 2.4HGz ISM band.

Features

n Highly integrated IF transceiver n Data rates up to 4Mbps n Integrated discriminator and filter alignment circuits n High signal to noise ratio at the discriminator output n Received signal strength indicator (RSSI) n D/A Converter for digitally generated IF n Low sleep mode current - typically less than 1mA n 3.0V to 5.5V operation n Fast 10msec switch time between transmit and receive modes n 48 Pin TQFP, 7mm body.
