MSB557TA-5 - BLINKING LED LAMP

The MSB557TA-5 by Micro Electronics is a BLINKING LED LAMP. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the MSB557TA-5 BLINKING LED LAMP datasheet (Micro Electronics).

Datasheet Details

Part number MSB557TA-5
Manufacturer Micro Electronics
File Size 81.36 KB
Description BLINKING LED LAMP
Datasheet download datasheet MSB557TA-5_MicroElectronics.pdf

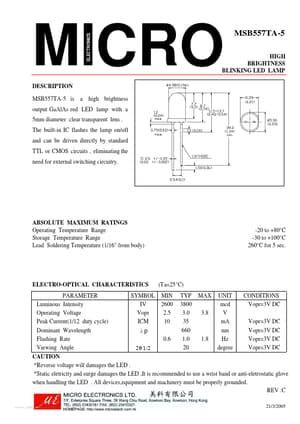

Additional preview pages of the MSB557TA-5 datasheet.

MSB557TA-5 Product details

Description

MSB557TA-5 is a high brightness output GaAlAs red LED lamp with a 5mm diameter clear transparent lens .The built-in IC flashes the lamp on/off and can be driven directly by standard TTL or CMOS circuits , eliminating the need for external switching circuitry.ABSOLUTE MAXIMUM RATINGS Operating Temperature Range Storage Temperature Range Lead Soldering Temperature (1/16" from body) -20 to +80°C -30 to +100°C 260°C for 5 sec.ELECTRO-OPTICAL CHARACTERISTICS PARAMETER Luminous Intensity Operat
