CCM2040 - LCD Module

Micro Electronics

📥 Download Datasheet

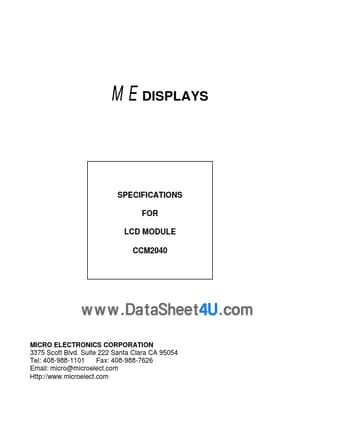

CCM2040 Datasheet Preview — Preview of CCM2040 PDF

Datasheet Details

Part number	CCM2040
Manufacturer	Micro Electronics
File Size	107.99 KB
Description	LCD Module
Datasheet	CCM2040_MicroElectronics.pdf

CCM2040 Product details

Description

Ground Supply Voltage for Logic LCD Contrast Adjust Register Select Read / Write Enable Data Bit 0 Data Bit 1 Data Bit 2 Data Bit 3 Data Bit 4 Data Bit 5 Data Bit 6 Data Bit 7 Backlight Backlight CCM2040 20 x 4 lines Character No.1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Function 0V 5V By User H: Data, L: Instruction Code H: Data Read, L: Data Write Enable Signal 8-Bit Interface 8-Bit Interface 8-Bit Interface 8-Bit Interface 4 or 8-Bit Interface 4 or 8-Bit Interface 4 or 8-Bit Interf

Features

S Number of Characters Display Font Built-in Controller Input Data Power Supply Duty Cycle Options CCM2040 20 x 4 lines Character 20 characters x 4 lines 5 x 8 dots HD44780 or Comp 4 Bits or 8-Bits Interface +5 V Single Power 1/16 Duty EL/LED Backlight, TN/STN.
