MUR820 - 8Amp Super Fast Glass Passivated Rectifier

Product Overview

Micro Commercial Components

📥 Download Datasheet

MUR820 8Amp Super Fast Glass Passivated Rectifier by Micro Commercial Components - Datasheet Preview — Datasheet preview – MUR820

Datasheet Details

Part number	MUR820
Manufacturer	Micro Commercial Components
File Size	73.79 KB
Description	8Amp Super Fast Glass Passivated Rectifier
Datasheet	MUR820 Datasheet
Note	This datasheet PDF includes multiple part numbers: MUR820, MUR810. Please refer to the document for exact specifications by model.

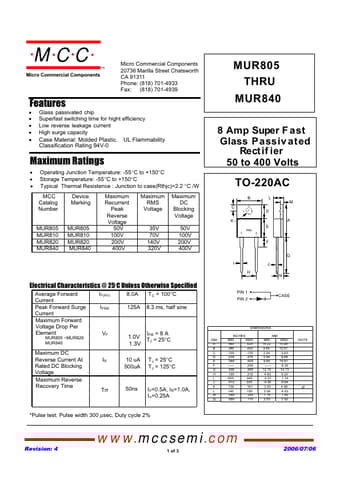

Additional preview pages of the MUR820 datasheet.

Product details

Features

Glass passivated chip.
Superfast switching time for hight efficiency.
Low reverse leakage current.
High surge capacity x Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Maximum Ratings.
Operating Junction Temperature: -55°C to +150°C.
Storage Temperature: -55°C to +150°C.
Typical Thermal Resistence : Junction to case(Rthjc)=2.2 °C /W MCC Catalog Number Device Marking MUR805 MUR810 MUR820 MUR840 MUR80.
