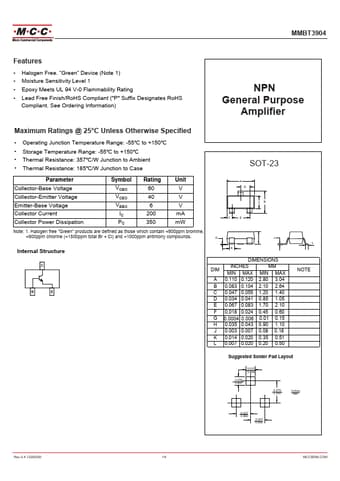

MMBT3904 - NPN Transistor

Micro Commercial Components

Datasheet Details

Part number	MMBT3904
Manufacturer	Micro Commercial Components
File Size	655.25 KB
Description	NPN Transistor
Datasheet	MMBT3904_MicroCommercialComponents.pdf

Halogen Free. “Green” Device (Note 1).
Moisture Sensitivity Level 1.
Epoxy Meets UL 94 V-0 Flammability Rating.
Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) NPN General Purpose Amplifier Maximum Ratings @ 25°C Unless Otherwise Specified.
Operating Junction Temperature Range: -55℃ to +150℃.
Storage Temperature Range: -55℃ to +150℃.
Thermal Resistance: 357℃/W Junction to Ambient.
