MBRX02560 - 0.25 Amp Schottky Barrier Rectifier

Product Overview

Micro Commercial Components

📥 Download Datasheet

MBRX02560 0.25 Amp Schottky Barrier Rectifier by Micro Commercial Components - Datasheet Preview — Datasheet preview – MBRX02560

Datasheet Details

Part number	MBRX02560
Manufacturer	Micro Commercial Components
File Size	123.45 KB
Description	0.25 Amp Schottky Barrier Rectifier
Datasheet	MBRX02560 Datasheet

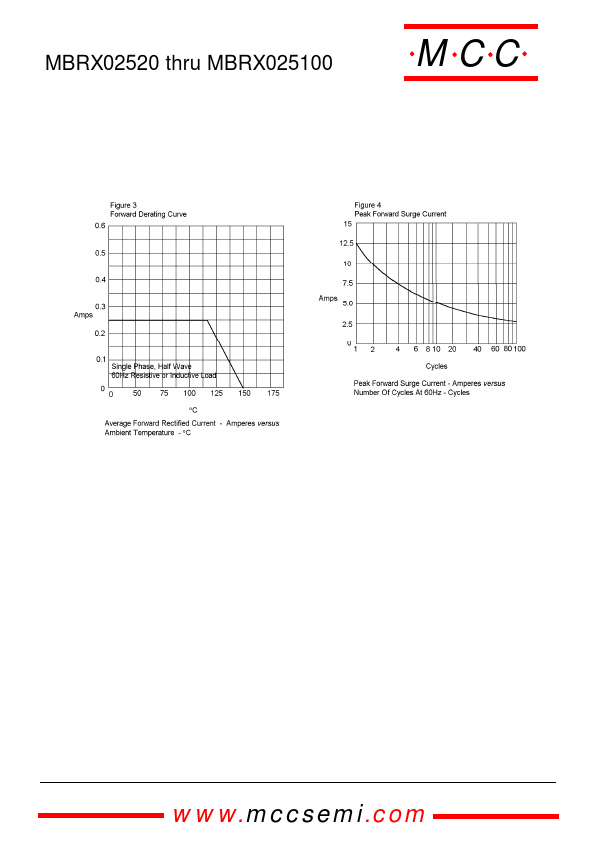

Additional preview pages of the MBRX02560 datasheet.

Product details

Features

l l l l l omponents 21201 Itasca Street Chatsworth !"# $ % !"# MBRX02520 THRU MBRX025100 0.25 Amp Schottky Barrier Rectifier 20 to 100 Volts High Current Capability Extremely Low Thermal Resistance Reverse Energy Tested Guard Ring Protection Low Forward Voltage Maximum Ratings l l l Operating Temperature: -55 C to +150 C Storage Temperature: -55 C to +150 C Maximum Thermal Resistance: 65 C/W Junction to Lead C o o o o o SOD323.
